GNR25DCZ, Sensata / Crydom GNR 90 Series Solid State Relay, 25 A rms Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control, Реле

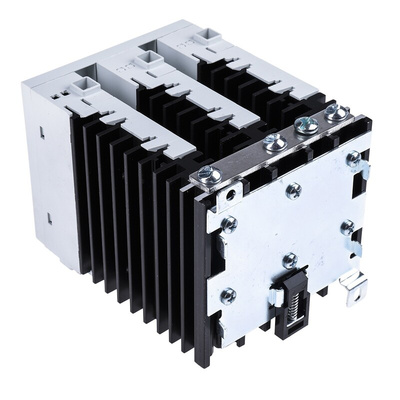

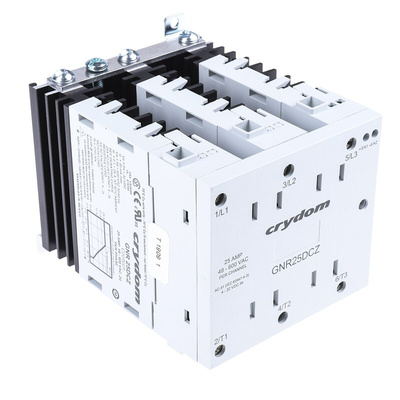

Sensata | Crydom Solid-State Relay, 4 to 32V DC Control Voltage Range, 25A Rated Load Current - GNR 90 Series - GNR25DCZ

Need a break from slow switching? This solid-state relay from Sensata | Crydom makes and breaks your circuit without any moving parts, making it a long-lasting and efficient choice. As it controls current loads up to 25A, it's a go-to device for high-power applications. A built-in direct bond copper substrate helps the unit keep its cool during busy work periods. As it comes with overvoltage protection, it won't buckle under the pressure of heavy electrical loads. Look for relays like this one in food production and material handling systems.

Features & Benefits

• Switch-on time of half a cycle for rapid switching
• Front-mounted LED indicator shows input status for quick troubleshooting
• Broad operating temperature range between -20°C and +80°C for use in demanding environments
• Wide operating voltage range of 48 to 600V for versatility
• Housing is self-extinguishing for safety in the event of a fire

How do I mount this product?

This relay is designed for mounting on a DIN rail or a panel, so you can incorporate it into your existing setup with ease.

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)
