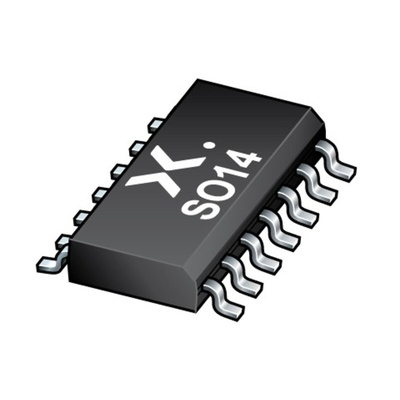

Nexperia 74HC00D,653, Quad 2-Input NAND Logic Gate, 14-PinSOIC, Логический вентиль

74HC Family Logic Gates, Nexperia

A range of NXP standard Logic Gates from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS

An easy route to logic circuit design. The NAND function is another essential function in our extensive range of logic gates. Outstanding solutions for control / glue logic, PCB miniaturization and routing simplification.

Key features and benefits
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Key applications
Cell phone
Computing
STB
LCD TV
Industrial controllers

The 74HC00, 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Input levels: For 74HC00: CMOS level, For 74HCT00: TTL level
Multiple package options
Specified from –40 °C to +85 °C and from –40 °C to +125 °C
