Nexperia Dual Switching Diode, 4-Pin SOT-143B BAS28,235, Диод

Small Signal Switching Diodes, Nexperia

Features

Supports customised high density circuit designs
Low-leakage and high-voltage types available
High switching speeds
Low capacitance

Solutions for high voltage systems. Fabricated in planar technology, our ≥ 100 V diodes deliver up to 4 ns (max.) switching speed. They support customized high density circuit designs and are encapsulated in hermetically sealed packaging.

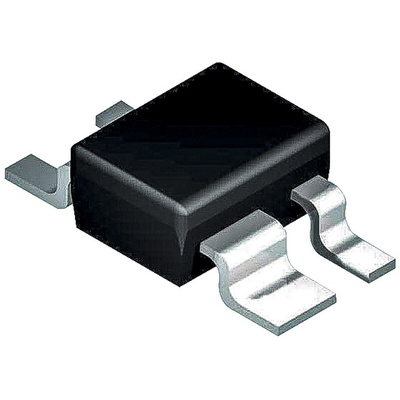

The BAS28 consists of two high-speed switching diodes, fabricated in planar technology, and encapsulated in the small plastic SMD SOT143 package. The diodes are not connected.

Small plastic SMD package
High switching speed: max. 4 ns
Continuous reverse voltage: max. 75 V
Repetitive peak reverse voltage: max. 85 V
Repetitive peak forward current: max. 500 mA .
Target applications
High-speed switching in e.g. surface mounted circuits.

Diodes and Rectifiers

Datasheet
