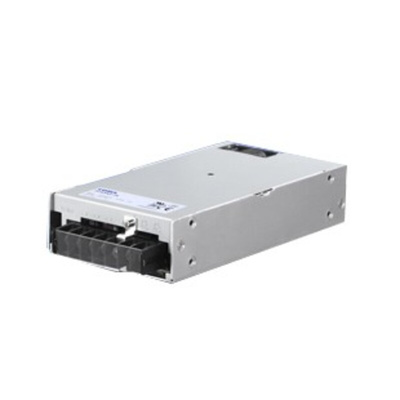

Cosel Switching Power Supply, PJA300F-24, 24V dc, 12.5A, 300W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

Cosel Embedded Switch Mode Power Supply

The Cosel PJA series 300W single output AC to DC embedded switch-mode power supply has an output current of 12.5A at 24VDC. It has a compact design with a 25% smaller size (as compared to the PBA series) and low power consumption. It has a universal input supply voltage rating ranging from 85VAC to 264VAC. The power supply is installed per any required EMC/EMI regulations.

Features and Benefits

Wide temperature ranges between -20°C and 70°C
Harmonic attenuator
Optional connector (vertical terminal block, header connector)
Cost-effective
Longer life
Low profile (meets 1U height is equal to 41mm or 1.61in)
Slow fan speed at no load
Enclosed package type
Chassis mount

Certifications

UL62368-1
C-UL (CSA62368-1)
EN62368-1 complies with DEN-AN
FCC-B
VCCI-B
CISPR22-B
EN55011-B
EN55022-B
IEC61000-3-2 class A

PJA Series Datasheet
