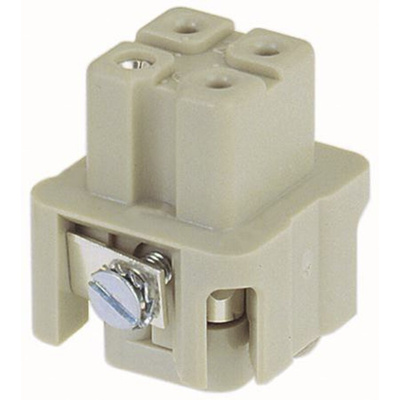

RS PRO Heavy Duty Power Connector Insert, 10A, Female, 4 Contacts

RS PRO Heavy Duty Power Connector Insert, 4 Contacts, 10 A, Female

Use this heavy-duty power insert from RS PRO when you need a safe removable connection in protected electrical areas. Installation is easy thanks to the four ready-mounted female pins. The contacts are grounded to protect your instrument or control system panel from reverse polarisation. The connector insert is made from a sturdy, impact-resistant polycarbonate material, providing insulation and durability.


This insert fits securely into RS PRO Series A housings with no need for additional tooling. The contacts are made from copper alloy for high conductivity and have silver plating for low resistance. This makes for an especially efficient connection.


Heavy-duty connectors like this are often used by panel builders and maintenance engineers. You'll frequently find this product used in robotics, machinery and other industrial applications.

Features and Benefits

• Current rating of 10 A


• 3+PE pole format


• Voltage ratings of 230, 400 and 600 V


• Operating temperature of -40°C to +125°C


• Straight body orientation


• Two rows, four contacts


• Screw termination type


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
