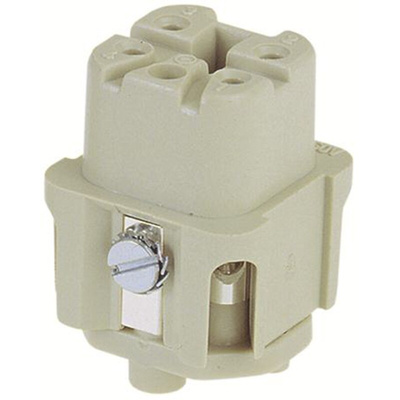

RS PRO Heavy Duty Power Connector Insert, 10A, Female, 5 Contacts

RS PRO Heavy Duty Power Connector Insert, 5 contacts, 10 A, Female

This heavy-duty power insert from RS PRO is ideal for use in protected electrical areas. It provides a safe and removable connection for your control system panels and instruments. The insert has five female pins that are ready-mounted to make installation quick and easy. To protect your equipment from reverse polarisation in the event of faulty wiring, the component also has grounded contacts.


The contacts are made from copper alloy plated with silver to provide high conductivity. The insert is also moulded to fit into the RS PRO Series A housing neatly, meaning there's no need for additional tooling.


You'll find heavy-duty connectors used in a range of industrial applications, including machinery and robotics. They're frequently used by maintenance engineers and machine and panel constructors.

Features and Benefits

• Straight body orientation


• Current rating of 10 A


• Two rows, five contacts


• Pole format of 4+PE


• Range of 4 A


• Screw termination method


• Voltage rating of 230, 400 and 600 V


• Operating temperature range of -40°C to +125°C


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

Line drawing

RS Pro Datasheet

Connectors Guide_v9_UK
