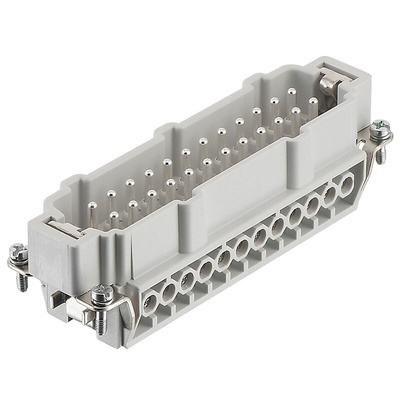

RS PRO Heavy Duty Power Connector Insert, 16A, Male, 24 Contacts

RS PRO Heavy Duty Power Connector Insert, 25 contacts, 16 A, Male

Looking for a component that offers a safe and removable connection in protected electrical areas? Turn to this heavy-duty power insert from the RS PRO range. This unit houses 25 male contacts that are ready-mounted for simple installation. It's suitable for use in control system panels and instruments.


Grounded contacts protect components from reverse polarisation caused by faulty wiring. The contacts are made from silver-plated copper alloy, so the unit is highly conductive. The component fits neatly into the RS PRO Series A housing, meaning no extra tools are necessary.


Heavy-duty connectors like these are often used by machine and panel builders. You'll find them used in a range of industrial applications such as machinery and robotics.

Features and Benefits

• Straight body orientation


• Current rating of 16 A


• Two rows, 25 contacts


• Pole format of 24+PE


• Screw termination method


• Voltage rating of 500 and 600 V


• Operating temperature range of -40°C to +125°C


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
