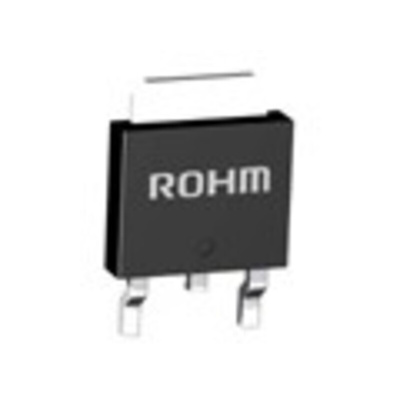

The BA1117FP is a low drop voltage regulator able to provide up to 1 A of output current, available in adjustable versions (VREF=1.25V). The device is supplied in: TO252-3 and TO220-3. Surface mounted packages optimize the thermal characteristics while offering a relevant space saving advantage. High efficiency is assured by NPN pass transistor. Only a very common 22uF minimum capacitor is needed for stability. Chip trimming allows the regulator to reach a very tight reference voltage tolerance, within ±1% at 25?.
Low dropout voltage: 1.2 V typ. (at Io= 1 A, 25℃)
Output current up to 1 A
Adjustable version availability (VREF= 1.25 V)
Internal current and thermal limit
Available in ±1% (at 25℃) and 2% in full temperature range
High supply voltage rejection: 75 dB typ. (at 25℃)
Temperature range: -20℃to 105℃
Designed to use byceramic capacitors
