ROHM Motor Driver IC

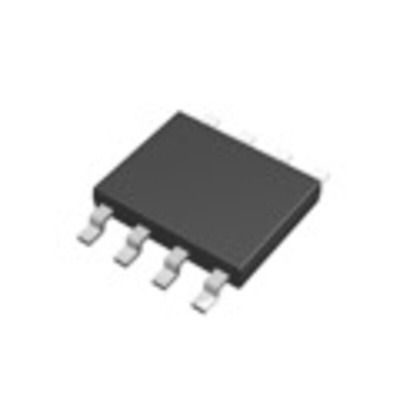

The ROHM 1-channel motor driver is an H-bridge HTSOP-J8 package up to 1A output current IC. This driver can facilitate low power consumption by direct PWM. There are built-in protection circuits in this IC. Each protection circuit operation contributes to set high reliability. This is a surface mount type IC with a built-in logic input pull-down resistor.
Features and Benefits
• Adjacent pins short protection
• Cross-conduction prevention circuit
• Driver for DC brush motor
• External PWM control
• Ghost supply prevention
• Inverted mount protection
• Low ON-resistance DMOS output
• Operating supply voltage ranges between 8V and 28V
• Operating temperature ranges between -25°C and 85°C
• Over voltage lock out circuit (OVLO)
• Over-current protection circuit (OCP)
• Power save function
• Single power supply input (rated voltage of 36V)
• Thermal shutdown circuit (TSD)
• Under voltage lock out circuit (UVLO)
Applications
• FAX machines
• Inkjet printers
• Laser printers
• Mini printers
• Multi-function printers
• Photo printers
• Plain Paper Copier (PPC)
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
