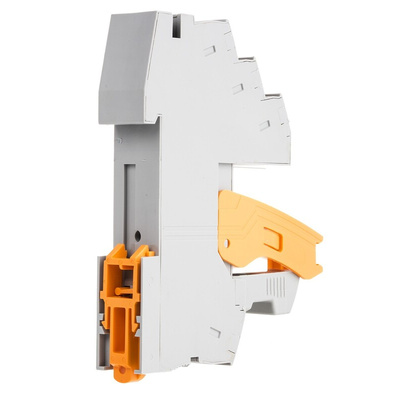

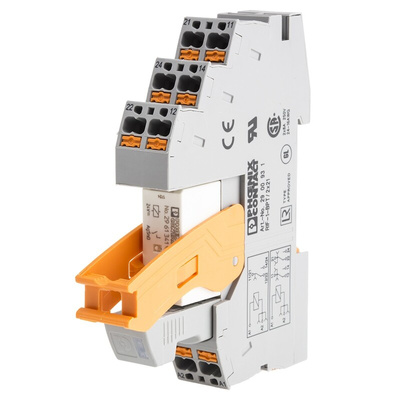

2909884, Phoenix Contact RIF-1-RPT-LDP-24DC/1IC Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPST, 1-Pole

Phoenix Contact Interface Relay Module, Screw Terminal, SPDT - RIF-1-RPT-LDP-24DC/1IC - 2909884

Safely couple signals between a PLC (programmable logic controller) and peripherals with this relay from Phoenix Contact. The unit is supplied ready for DIN mounting and includes a base, plug-in interference suppression module and retaining bracket for simple setup.
The relay module accepts both solid and flexible conductors over a wide cross-section range. Its cabling system makes it easy to configure and wire, so connection to your control system can be done quickly. Thanks to reverse polarity protection, it won't be damaged if its outlet is wired incorrectly.
This component has a narrow profile to allow for maximum packing capacity on a circuit board. It's conveniently sealed, which makes it washable. This means you can remove welding flux residue without worrying about solvents affecting the relay's function.

Features and Benefits

• Coil voltage of 24 V AC/DC
• Switching current of 100 mA
• Switching voltage of 250 V AC/DC
• SNPO (single pole, normally open) contact configuration
• Silver alloy contact material
• Life of 30,000,000 cycles
• 1 pole
• Screw terminal type
• IP20 (ingress protection) rating for protection against solid objects up to 12 mm
• Dimensions of 16 (length) x 93 (height) x 75 mm (depth)
• Operating temperature range of -40°C to +70°C
