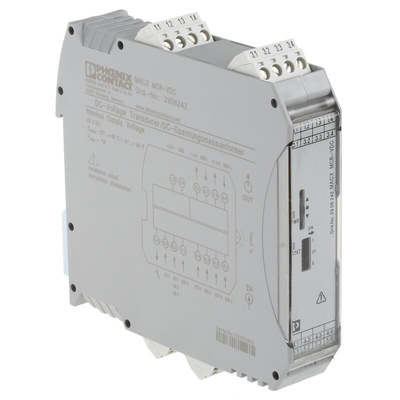

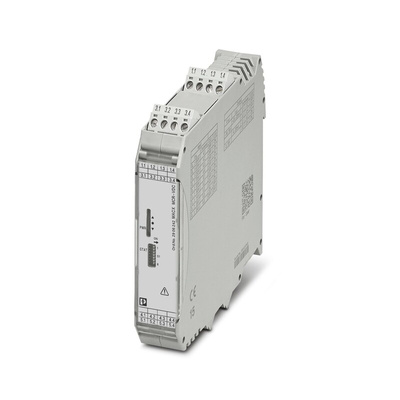

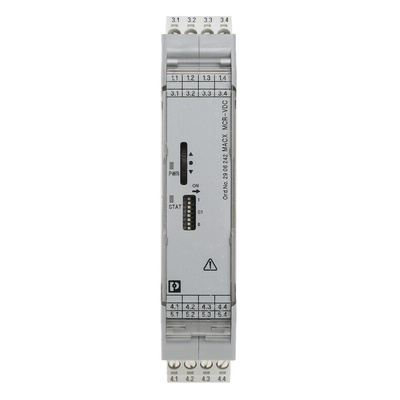

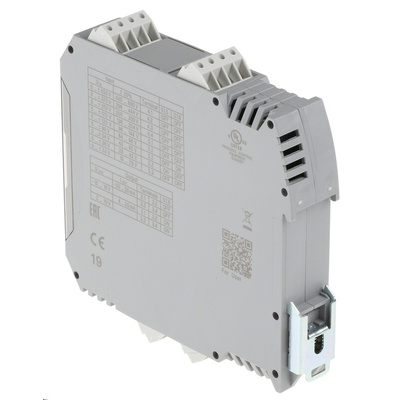

2906242, Phoenix Contact MACX MCR Series Signal Conditioner, Voltage Input, Current, Voltage Output, 24V dc Supply

Phoenix Contact Voltage Transducer, 1.2W Power Dissipation, M3 Screw Thread - MACX MCR-VDC - 2906242

Use this voltage transducer from Phoenix Contact to translate signals to a format your control system understands. It converts inputs ranging between -550 and +550V DC to current and voltage outputs that data acquisition units can assess. The device has a step response time of less than 16ms, so it's quick to respond to detected modulations. It's an energy-efficient solution that consumes just 60mA of current during operation.
This piece of kit has screw terminals that make it easy to set up and provide good resistance against vibration. Thanks to compact dimensions of 113 (H) x 22.5 (W) x 114mm (D), it's a cinch to install in tight setups and can also be conveniently mountable in any position. It's safe to use in challenging settings, thanks to an operating temperature range between -25°C and +60°C, so is commonly used in the process and packaging industry.

Features & Benefits

• Light weight of 226.5g limits strain on your equipment
• IP20 rating shows that it's finger-safe and protected against objects larger than 12mm
• CE certified for safe use on standard European circuits
