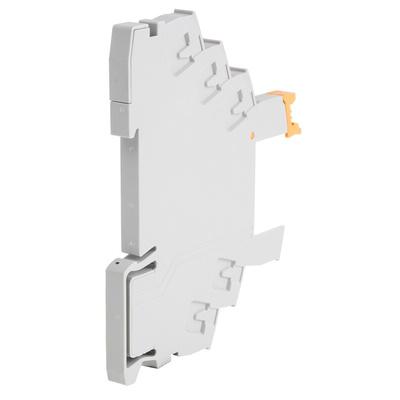

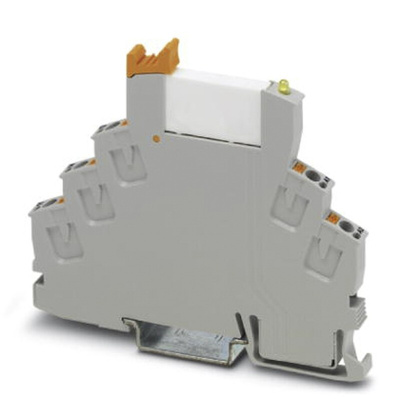

2908327, Phoenix Contact RIF-0-RPT-M-24DC/21 Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole

Phoenix Contact Interface Relay, Single Pole, 24V DC Input - RIF-0-RPT-M-24DC/21 - 2908327

Send digital signals between devices that are electrically isolated from each other using this interface relay from Phoenix Contact. It lets components used in automated industrial applications communicate safely and reliably, so you benefit from a smooth workflow.
The relay module is supplied pre-assembled, so it includes a base and ejector and is ready to install. Electromagnetic compatibility ensures it won't interfere with the function of electronic devices positioned nearby. A polyamide housing means you can rest assured the unit won't rust, even in moist operating conditions.
A wide switching voltage range of 5 to 250V DC makes this a versatile option. To maximise packing space in your control cabinet, you can assemble the relay with zero spacing between it and other components.

Features & Benefits

• Meets DIN EN 50178 safety standards for electronic equipment used in power installations
• Protected against overvoltage and surges, helping to safeguard equipment against electrical faults
• Push-in connectors for convenient and tool-free electrical wiring
• Space-saving dimensions of 92.5 (H) x 6.2 (W) x 77.7mm (D)
• Conforms to UL 94 V2 flammability standards, so it only burns for a maximum of 60 seconds if it catches alight
