SELEKTA 174 Top3, Theben 2 Channel Digital DIN Rail Time Switch Measures Hours, 230 V ac

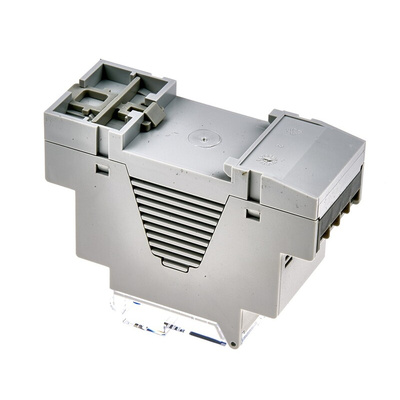

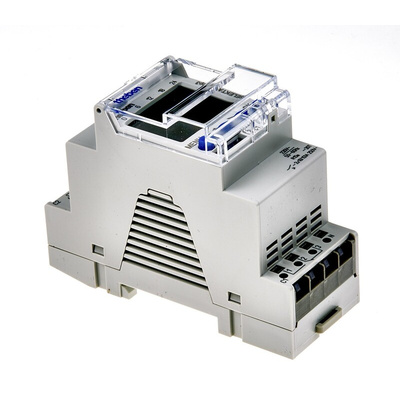

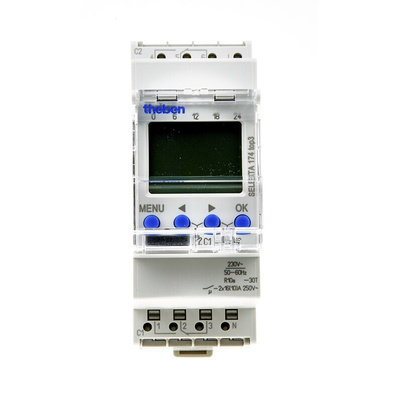

Theben Time Switch

The Theben time switch is a 2 channel DIN rail double pole double through(DPDT) device. It is an astronomical time switch with the weekly program and 56 memory locations. It is rated with 230VAC operating voltage and frequency ranges between 50Hz and 60Hz. The housing material of this switch is highly temperature resistant and self-extinguishing thermoplastic. This device safe transfers via optional Bluetooth low energy OBELISK top3. It is useful for industrial applications.

Features and Benefits

• 100% compatible with top2
• Battery life of 10 years
• Change over type of contact
• Fixed ON/OFF switching times can be programmed (e. G. Night time interruption)
• Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
• Offset for adjusting of sunrise and sunset time
• Opening width < 3mm (μ)
• Operating temperature ranges between -30°C and 55°C
• Position data via coordinates or country/city lists can be programmed
• Programming by app possible
• Reversible astronomical mode (evenings ON - mornings OFF or evenings OFF - mornings ON) or can be deactivated
• Simulation of switching times (calculated astronomical times and programmed ON/OFF switching times)
• Switching output is phase independent
• Type of connection is Duo Fix spring terminals

Certifications

• EN 60 730-1
• IP20 rated
