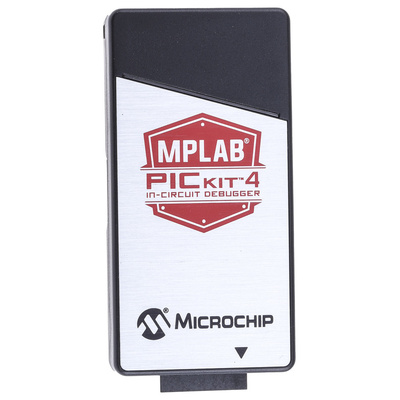

PG164140, Microchip MPLAB PICkit 4 In-Circuit

The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® and dsPIC® flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE), version 4.15. The MPLAB PICkit 4 is connected to the design engineer's computer using a high-speed 2.0 USB interface and can be connected to the target via an 8-pin Single In-Line (SIL) connector. The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™). An additional micro SD card slot and the ability to be self-powered from the target means you can take your code with you and program on the go.*

PICkit 4 supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming Data Gateway, while being backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP. The PICkit 4 also has a unique programmer-to-go function with the addition of a micro SD card slot to hold project code and the ability to be powered by the target board.*

The MPLAB PICkit 4 In-Circuit Debugger/Programmer supports many, but not all, PIC MCUs and dsPIC DSCs at this time. The firmware is continually being upgraded to add support for new devices. To request priority device support or to report issues, email: PICkit4_Update@microchip.com

Features and Benefits

Matches silicon clocking speed - Programs as fast as the device will allow
Target voltage of 1.20V to 5.5V - Wide target voltage supports a variety of devices
Can supply up to 50mA of power to the target - Can be powered from the target to program in the field*
Minimal current consumption at <100μA from target
Portable USB-powered and RoHS-compliant
8-pin single in-line header - Supports advanced interfaces such as 4-wire JTAG and Serial Wire Debug with streaming Data Gateway
Backward compatible for demo boards, headers and target systems using 2-wire JTAG and ICSP
Option to be self-powered from the target (2.7V to 5.5V)
Programmer-to-Go (PTG) support

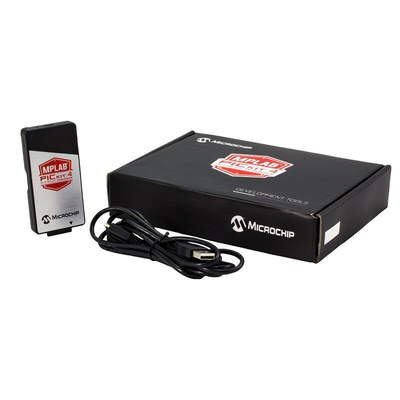

Kit Contains

MPLAB PICkit 4 In-Circuit Debugger/Programmer
USB to micro-B USB cable
Warranty card
2 MPLAB PICKit 4 stickers

Datasheet

Quick Start Guide

User Guide
