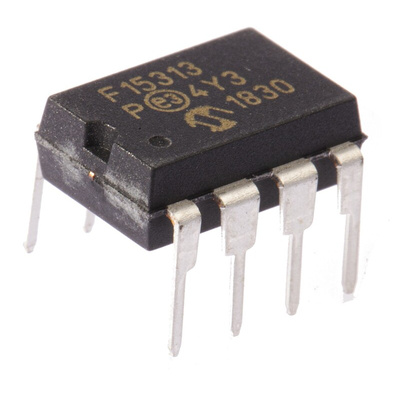

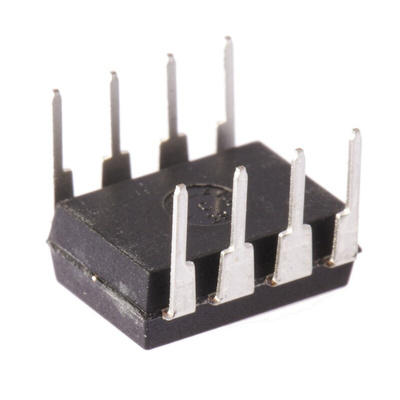

Microchip PIC16F15313-I/P, 8bit PIC Microcontroller, PIC16F, 32MHz, 3.5 kB Flash, 8-Pin PDIP, Микроконтроллер

Microchip Technology Microcontroller

The Microchip technology PIC16F15313-I/P family type, PDIP package, through-hole mount, 8-pin 32-bit has a maximum voltage rating of 5.5V. This operates at a maximum speed of 32MHz and features 3.5kb ISP flash program memory and 256kb of SRAM. It combines programmable and reconfigurable analogue and digital blocks with flexible automatic routing.

Features and Benefits

• 5-bit Digital-to-Analogue Converter (DAC)
• Complementary waveform generator (CWG)
• Enhanced mid-range core with 49 instructions, 16 stack levels
• Enhanced power ON/OFF reset
• EXtreme Low Power (XLP)
• Five channel 10-bit ADC with voltage reference
• Four 10-bit PWMs
• IDLE and DOZE low power modes
• In-circuit serial programming
• Low-Power Brown-Out Reset (LPBOR)
• Numerically controlled oscillator (NCO)
• One 8-bit timer (TMR0/TMR1)
• Operating temperature ranges between -40°C and 125°C
• Peripheral module disable (PMD)
• Peripheral Pin Select (PPS)
• Programmable Brown-Out Reset (BOR)
• Two 16-bit timers (TMR1)
• Two capture, compare, PWM (CCP)
• Two comparators
• Window watchdog timer (WWDT)

Applications

• Embed designs
• Household appliances
• Industrial
