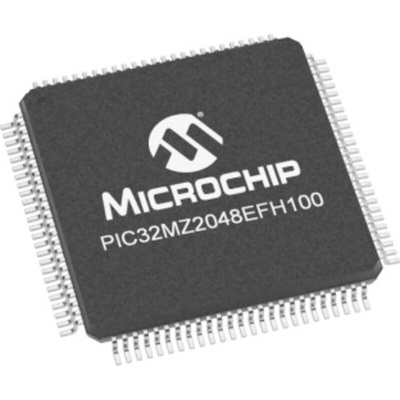

Microchip PIC32MZ2048EFH100-250I/PF, 32bit PIC Microcontroller, PIC32MZ, 252MHz, 2 MB Flash, 100-Pin TQFP, Микроконтроллер

Microchip Technology Microcontroller

The Microchip technology PIC32 family type, TQFP package, surface mount, 100-pin 32-bit PIC has a maximum voltage rating of 3.6V. The microcontroller operates at a maximum speed of 250MHz and features 2Mb ISP flash program memory and 512kb SRAM. It is used in embed designs.

Features and Benefits

• 10/100 Mbps Ethernet MAC with MII and RMII interface
• 12-bit, up to 40-channel Analogue-to-Digital (A/D) converter
• 252 MHz/415 DMIPS, MIPS Warrior M-class core
• 50 MHz External Bus Interface (EBI)
• 50 MHz Serial Quad Interface (SQI)
• 8 channels of hardware programmable DMA and 18 channels of dedicated DMA with automatic data size detection
• CAN, UART, I2C, PMP, EBI, SQI and analogue comparators
• Charge Time Measurement Unit (CTMU) for cap touch or precise time measurement
• Debugger development support
• Dual panel flash for live update support
• Four 16-bit accumulators
• FPU for fast single and double-precision math
• Hi-speed USB 2.0 device/host/otg
• Integrated software libraries and tools
• Low power consumption and system flexibility
• Memory management unit for optimum embedded OS execution
• Number of I/O 78-pin
• Operating temperature ranges between -40°C and 85°C
• Peripheral Pin Select (PPS) functionality to enable function remap
• SPI/I2S interfaces for audio processing and playback
