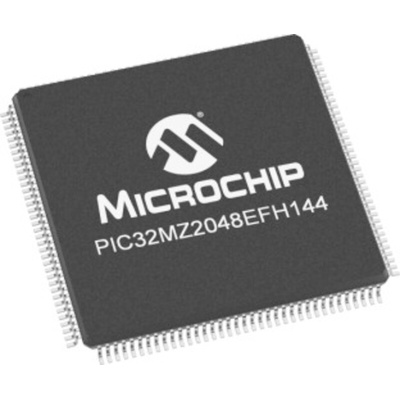

Microchip PIC32MZ2048EFH144-250I/PH, 32bit PIC Microcontroller, PIC32MZ, 252MHz, 2 MB Flash, 144-Pin TQFP, Микроконтроллер

Microchip Technology Microcontroller

The Microchip technology PIC32 family type, TQFP package, surface mount, 144-pin 32-bit PIC has a maximum voltage rating of 3.6V. The microcontroller operates at a maximum speed of 252MHz and features 2Mb ISP flash program memory, 512kb of SRAM. It is used in embed designs.

Features and Benefits

• 10/100 Mbps Ethernet MAC with MII and RMII interface
• 12-Bit, up to 48-channel Analogue-to-Digital (A/D) converter
• 252 MHz/415 DMIPS, MIPS Warrior M-class core
• CAN, UART, I2C, PMP, EBI, SQI and analogue comparators
• Charge time measurement unit (CTMU) for cap touch or precise time measurement
• Dual Panel Flash for live update support
• Four 16-bit accumulators
• FPU for fast single and double-precision math
• Hi-speed USB 2.0 device/host/otg
• Idle, sleep and doze modes selectively for power reduction
• Internal oscillator is 8MHz
• Low power consumption and system flexibility
• Memory management unit for optimum embedded OS execution
• MicroMIPS mode for up to 35% code compression
• Nine 16-bit timers
• Numbers of I/O 120-pin
• One 10-bit Digital-to-Analog Converter (DAC)
• Operation temperature ranges between -40°C and 85°C
• Single-cycle MAC, saturating and fractional math
• SPI/I2S interfaces for audio processing and playback
