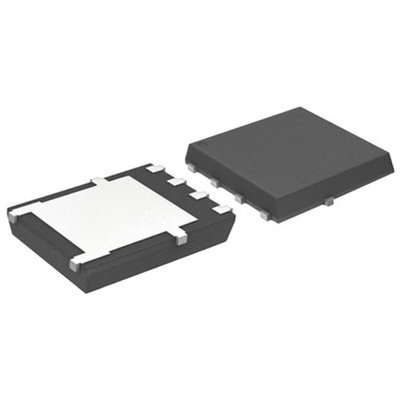

N-Channel MOSFET, 71 A, 60 V, 5-Pin DFN onsemi NVMFS5C670NLWFAFT1G, МОП-транзистор

ON Semiconductor MOSFET

The ON Semiconductor DFN5 surface mount N-channel MOSFET is a new age product with a drain-source voltage of 60V and a maximum gate-source voltage of 20V. It has drain-source resistance of 6.1mohm at a gate-source voltage of 10V. It has continuous drain current of 71A and maximum power dissipation of 61W. The minimum and a maximum driving voltage for this transistor are 4.5V and 10V respectively. The MOSFET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.

Features and Benefits

• Automotive power MOSFET
• Compact and efficient design
• High thermal performance
• Lead (Pb) free
• Low QG and capacitance to minimize driver losses
• Low RDS (on) to minimize conduction losses
• Operating temperature ranges between -55°C and 175°C
• Wettable flank option available for enhanced optical inspection

Applications

• Automotive
• Load switch - ECU, chassis, body
• Motor control - EPS, wipers, fans, seats, etc.
• Power switches (high side driver, low side driver, H-bridges, and more)
• Solenoid driver - ABS, fuel injection
• Switching power supplies

Certifications

• AEC−Q101
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
