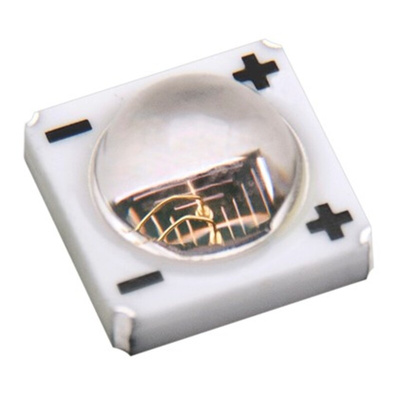

2.9 V Amber LED SMD, LedEngin Inc LZ1-10A102-0000, Светодиод

The LZ1-00A102 Amber LED emitter generates 115 lumen at 2.6W power dissipation in an extremely small package. With a 4.4mm x 4.4mm footprint, this package provides exceptional luminous flux density. The patent-pending design has unparalleled thermal and optical performance. The high quality materials used in the package are chosen to optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high Humidity.

High Luminous Efficacy Amber 590nm LED
Ultra-small foot print – 4.4mm x 4.4mm
Up to 1.2A drive current
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (6.0°C/W)
Electrically neutral thermal path
Lead (Pb) free
Reflow solderable
Available on tape and reel or with MCPCB
Typical Applications
Emergency vehicle lighting
Strobe and warning lights
Marine and buoy lighting
Aviation and obstruction lighting
Roadway beacons and traffic signaling
Architectural lighting
Stage and studio lighting
Landscape lighting
Automotive signal and marker lights
Horticulture
