RS PRO Base Mounted Current Transformer, 100A Input, 100:5, 5 A Output, 30 x 10mm Bore, Трансформатор тока

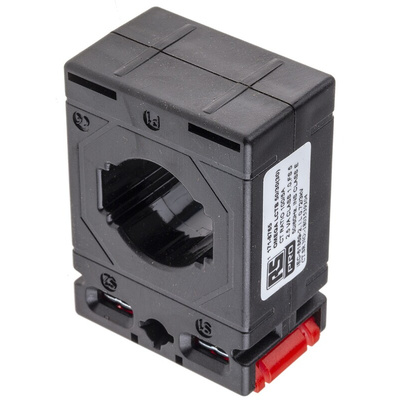

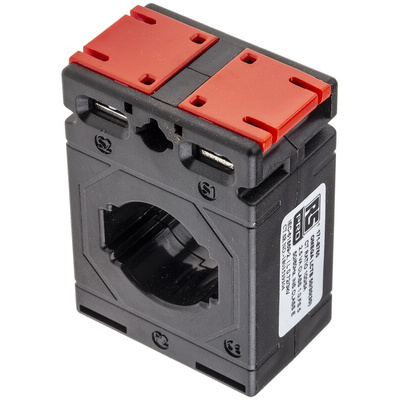

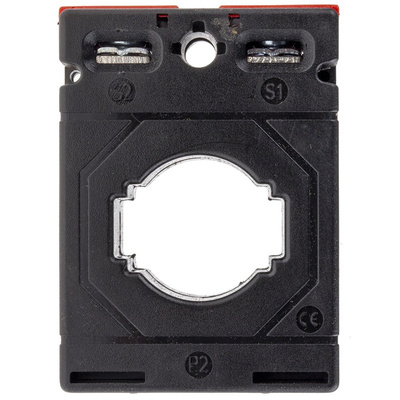

RS PRO Square Current Transformer (100:5A)

A reliable and tough current transformer (CT) with a current ratio of 100:5A. Highly accurate with a class 1 rating and designed to be base mounted.
A square type transformer with sealable terminal covers and encapsulated with Polycarbonate rated to UL94V-0 dictating that in the event of a fire the flammable parts of the transformer will not burn for more than 10 secs protecting equipment and premises.
A reliable and accurate CT current transformer suitable for harsh industrial environments and applications.

Current transformer (CT)
Square type
Current ratio of 100:5A
Class 1 accuracy
Base/ Surface mounted
Wire sealable terminal covers
IP20 rated
Altitude up to 2000 m
Operating temperature of -5°C to + 55°C
UL94V-0 fire rating
Dimensions of 70 x 50 x 31mm (bore size of 30 x 10mm)

Standards and Approvals: IEC 60044-1, IEC 61869-1, IEC 61010 - 2

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS Pro Datasheet
