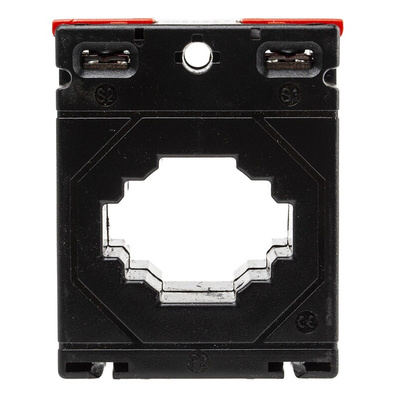

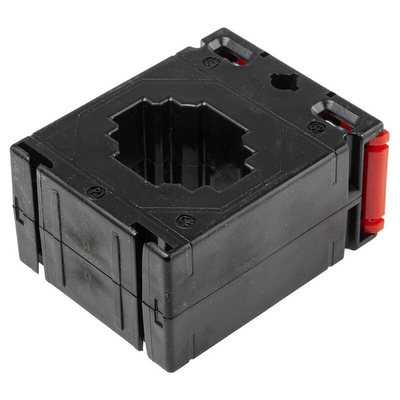

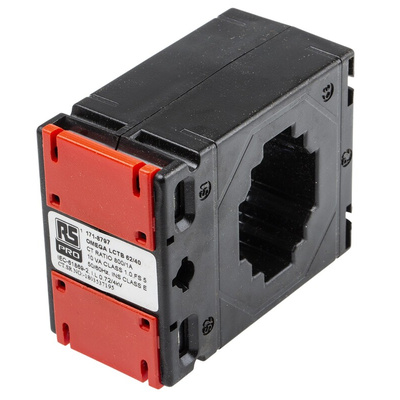

RS PRO Base Mounted Current Transformer, 800A Input, 800:1A, 1A Output, 40 x 11mm Bore, Трансформатор тока

RS PRO Square Current Transformer (800:1A)

A reliable and tough current transformer (CT) with a current ratio of 800:1A. Highly accurate with a class 1 rating and designed to be base mounted.
A square type transformer with sealable terminal covers and encapsulated with Polycarbonate rated to UL94V-0 dictating that in the event of a fire the flammable parts of the transformer will not burn for more than 10 secs protecting equipment and premises.
A reliable and accurate CT current transformer suitable for harsh industrial environments and applications.

Features and Benefits

Current transformer (CT)
Square type
Current ratio of 800:1A
Class 1 accuracy
Base/ Surface mounted
Wire sealable terminal covers
IP20 rated
Altitude up to 2000 m
Operating temperature of -5°C to + 55°C
UL94V-0 fire rating
Dimensions of 78 x 62 x 40mm (bore size of 40 x 11mm)

Standards and Approvals: IEC 60044-1, IEC 61869-1, IEC 61010 - 2

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS Pro Datasheet
