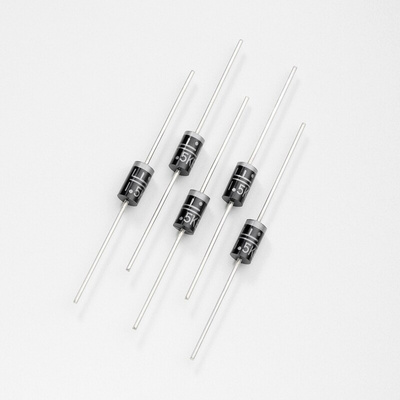

Littelfuse 1.5KE6.8A, Uni-Directional TVS Diode, 1500W, 2-Pin DO-201, Диод

The 1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

1500W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
Glass passivated chip junction in DO-201 Package
Fast response time: typically less than 1.0ps from 0 Volts to BV min
Excellent clamping capability
Typical failure mode is short from over-specified voltage or current
Low incremental surge resistance
Typical IR less than 1μA when VBR min>12V
High temperature to reflow soldering guaranteed: 260°C/40sec / 0.375”,(9.5mm) lead length, 5 lbs., (2.3kg) tension
VBR @ TJ = VBR@25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)
Plastic package is flammability rated V-0 per Underwriters Laboratories
Matte tin lead–free plated
Halogen free
Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD- 609A.01)
