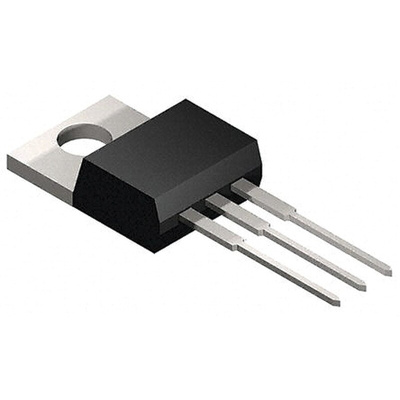

Q4025L6TP, Littelfuse Through Hole, 3-pin, TRIAC, 400V, Gate Trigger 2.5V, Симистор

25 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard type devices normally operate in Quadrants I & III triggered from AC line. Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.

Features & Benefits:
Glass — passivated junctions
Voltage capability up to 1000 V
Surge capability up to 250 A
Applications:
Excellent for AC switching and phase control applications such as heating, lighting, and motor speed controls.
Typical applications are AC solid-state switches, industrial power tools, exercise equipment, white goods and commercial appliances.
Alternistor Triacs (no snubber required) are used in applications with extremely inductive loads requiring highest commutation performance.
Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage.
