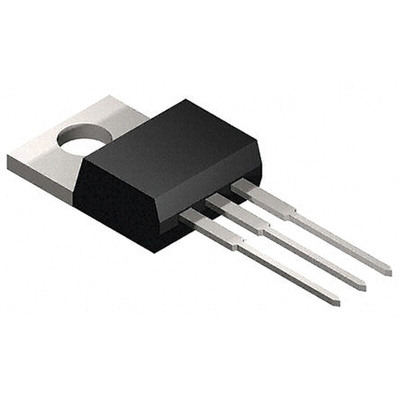

Q6015L5TP, Littelfuse Through Hole, 3-pin, TRIAC, 600V, Gate Trigger 2V, Симистор

15 Amp and 16 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard type devices normally operate in Quadrants I & III triggered from AC line. Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.

Features & Benefits:
Glass - passivated junctions
Voltage capability up to 1000 V
Surge capability up to 200 A
Solid-state switching eliminates arcing or contact bounce that create voltage transients
No contacts to wear out from reaction of switching events
Restricted (or limited) RFI generation, depending on activation point sine wave
Requires only a small gate activation pulse in each half-cycle
Applications:
Excellent for AC switching and phase control applications such as heating, lighting, and motor speed controls.
Typical applications are AC solid-state switches, light dimmers, power tools, lawn care equipment, home/brown goods and white goods appliances.
Alternistor Triacs (no snubber required) are used in applications with extremely inductive loads requiring highest commutation performance.
Internally constructed isolated packages are offered for ease of heat sinking with highest isolation voltage.
