RPi3B+_Black Case, Raspberry Pi 3 B+ with Black Case

Raspberry Pi 3B+, Black Case

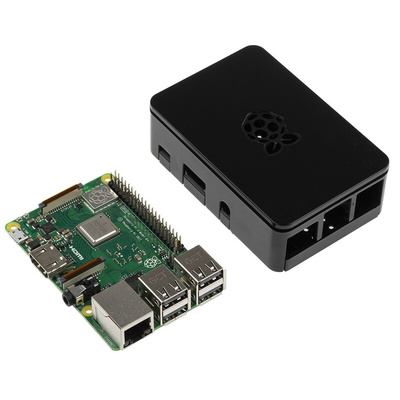

What’s included?

1 x Raspberry Pi 3 Model B+ (137-3331)
1 x Black Case (167-7046)

The Case

The Raspberry Pi cases are designed to protect the Raspberry Pi board. This sleek black case clips together around the Pi board and features all the relevant cut-outs to access the board still. It also makes your board look a little smarter.

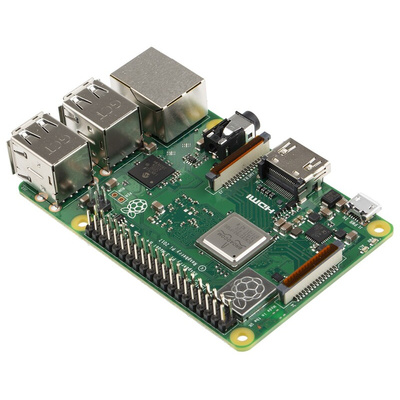

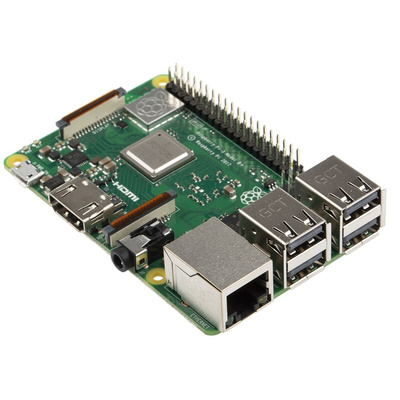

Raspberry Pi 3 Model B+

This is the latest board from Raspberry Pi. In addition to previous functionality, it also offers Power over Ethernet (PoE).
This compact computer board works alongside a screen, keyboard and mouse to create a functioning computer. There are endless projects you can create from a Raspberry Pi including; coding, internet-of-things, workplace automation, gaming, monitoring conditions and creating a media centre.
If you’re looking for great speed and connectivity, the Raspberry Pi 3 Model B+ is for you. It features a 64-bit quad core processor and runs at least 10% faster than the previous Raspberry Pi 3 Model B.
Whether you want to learn computer programming, or trying to incorporate Internet-of-things into your workplace, the B+ model can help you achieve your goals.

What’s on-board?

Processor: Broadcom BCM2837 Processor Quad core A53 (ARM v8) 64-bit SoC
Memory: 1GB LPDDR2 SDRAM
Bluetooth: Cypress BLE chip 2.4Ghz/5.0GHz IEEE 802.11ac
Ethernet: Gigabit Ethernet over USB 2.0 (300Mbps max)
USB: Four USB 2.0 ports
Connection: GPIO Header 40-pin
HDMI: 1 x full size
Video: MIPI DSI display port, MIPI CSI camera port & 4 Pole stereo output and composite video port
Multimedia: H.264, MPEG-4 decode (1080p30). H.264 encode (1080p30). OpenGL ES 1.1, 2.0 graphics.
Storage: microSD card slot for loading operating system and data storage
Power: USB connector for 5.1V / 2.5A dc
POE enabled

Raspberry Pi 3 Model B+ Datasheet

Raspberry Pi 3 Model B+ Mechanical Drawing

Raspberry Pi 3 Model B+ Schematic
