RPi3B+_NOOBS_Case, Raspberry Pi 3 B+ with Black Case & NOOBs

Raspberry Pi 3 Model B+ & NOOBS

What’s included?
1 x Raspberry Pi 3 Model B+ (137-3331)
1 x Black Case (167-7046)
1 x NOOBS (121-3897)

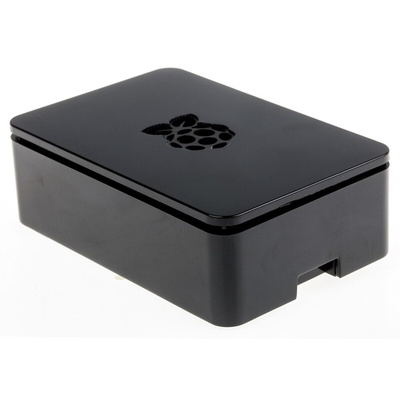

The Case
The Raspberry Pi cases are designed to protect the Raspberry Pi board. This sleek black case clips together around the Pi board and features all the relevant cut-outs to access the board still. It also makes your board look a little smarter.

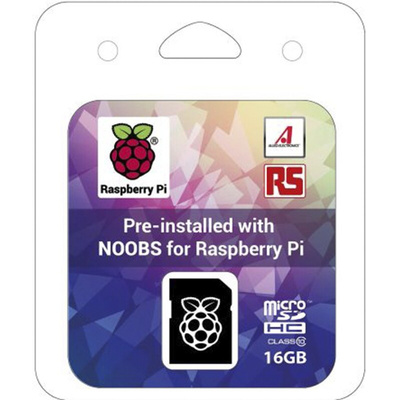

What is NOOBS?
NOOBS (New Out Of Box Software) is a microSD card preinstalled with software to get your Pi board up and running. Connect your Pi to your router via an Ethernet cable when you first turn it on you will be able to choose to use one of the following operating systems. Without an Ethernet connection, Raspbian is installed:
• Raspbian
• Pidora
• OpenElec
• RaspBMC
• RISC OS
• Arch
• Linux

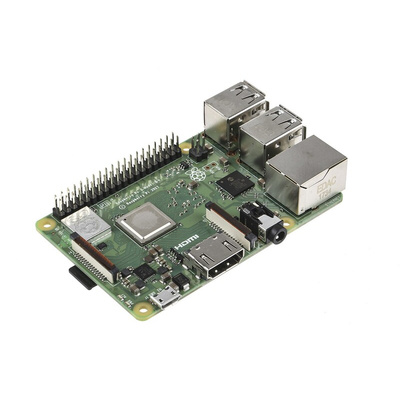

Raspberry Pi 3 Model B+
This is the latest board from Raspberry Pi. In addition to previous functionality, it also offers Power over Ethernet (PoE).
This compact computer board works alongside a screen, keyboard and mouse to create a functioning computer. There are endless projects you can create from a Raspberry Pi including; coding, internet-of-things, workplace automation, gaming, monitoring conditions and creating a media centre.
If you’re looking for great speed and connectivity, the Raspberry Pi 3 Model B+ is for you. It features a 64-bit quad core processor and runs at least 10% faster than the previous Raspberry Pi 3 Model B.
Whether you want to learn computer programming, or trying to incorporate Internet-of-things into your workplace, the B+ model can help you achieve your goals.

What’s on-board?
Processor: Broadcom BCM2837 Processor Quad core A53 (ARM v8) 64-bit SoC
Memory: 1GB LPDDR2 SDRAM
Bluetooth: Cypress BLE chip 2.4Ghz/5.0GHz IEEE 802.11ac
Ethernet: Gigabit Ethernet over USB 2.0 (300Mbps max)
USB: Four USB 2.0 ports
Connection: GPIO Header 40-pin
HDMI: 1 x full size
Video: MIPI DSI display port, MIPI CSI camera port & 4 Pole stereo output and composite video port
Multimedia: H.264, MPEG-4 decode (1080p30). H.264 encode (1080p30). OpenGL ES 1.1, 2.0 graphics.
Storage: microSD card slot for loading operating system and data storage
Power: USB connector for 5.1V / 2.5A dc
POE enabled

Raspberry Pi 3 Model B+ Datasheet

Raspberry Pi 3 Model B+ Mechanical Drawing

Raspberry Pi 3 Model B+ Schematic
