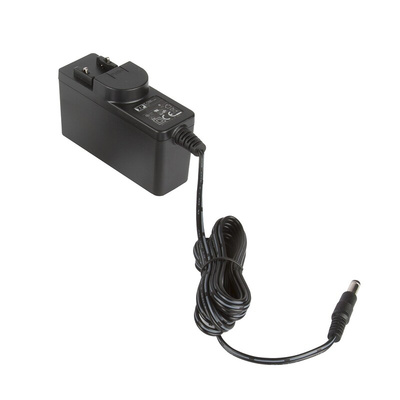

ACM36US12, XP Power 36W Plug-In AC/DC Adapter 12V dc Output, 3A Output

XP Power Supply

The XP power ACM36 series plug-in power supply has a regulated output voltage rating of 12VDC and a current rating of 3A. It supports numerous applications due to its wide-ranging input (90-264VAC) that complies with the universal standard. It has a high, active mode efficiency and an extremely low, no-load power consumption. It has interchangeable mains connectors output voltages from 9V to 36V.
Note:
This is for the power supply body only. Interchangeable connectors must be ordered separately.

Features and Benefits

Power rating of 36W
Energy efficiency level VI
Class II construction
Output current is 3000mA
Total regulation is 5%
Efficiency is 88.6%
3 years warranty

Applications

Industrial
Medical

Certifications

EN55032
EN61000-3-2
EN61000-3-3
IEC60601-1-2
EN61204-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
EN60601-1-2
UL60950-1
EN60950-1
IEC60950-1
LVD
UL ANSI/AAMI ES 60601-1
Medical, 2 x MOPP
CSA C22.2 No. 60601
EN60601-1
IEC60601-1

Datasheet
