Digilent Pmod KYPD: 16-Button Keypad GPIO Interface 410-195

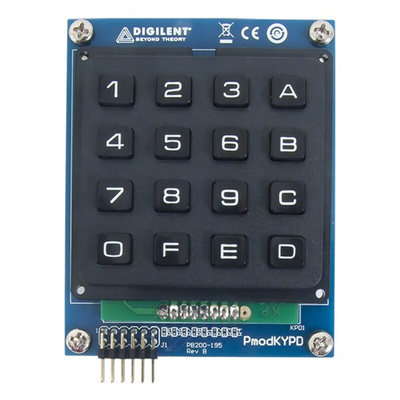

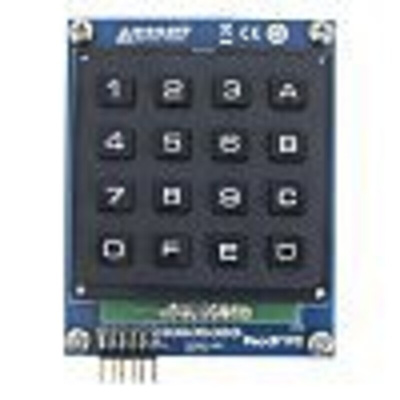

Digilent Pmod KYPD Keypad

The Digilent Pmod KYPD is a 16-button keypad that provides users with immense configurability. It is arranged in a hexadecimal format (0-F). It utilizes 4 rows and 4 columns to create an array of 16 momentary pushbuttons. It communicates with the host board via the GPIO protocol.

Features and Benefits:

• 12-pin Pmod port with GPIO interface
• 16 momentary pushbuttons
• Can detect simultaneous button presses
• Follows Digilent Pmod interface specification type 1
• Isolated rows and columns
• Lead-free
• Small PCB size for flexible designs 3.4in´2.7in (8.6cm´6.9cm)

Applications:

• Electronics laboratories
• Embedded systems
• IoT systems

Certifications:

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Datasheet
