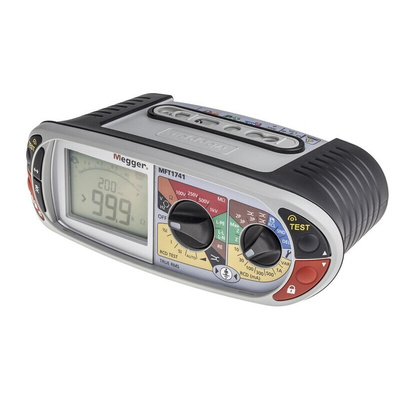

1009-987, Megger MFT1741 Multifunction Tester, 100 V, 250 V, 500 V, 1000 V , Earth Resistance Measurement With Bluetooth, Тестер

Megger MFT1741 Multifunction Tester, Battery-Powered, 10 to 600V Voltage Measuring Range - MTF1701 Series

Put your electrical installations through their paces with this multifunction tester from Megger. Its confidence meter analyses readings for accuracy and adjusts for noise when measuring loop impedance. This makes it a cinch to accurately test systems where electrical disturbance tends to butt in. There's no need to worry about juggling your test probes, as the device's automatic start function leaves both your hands free. Colour-coded controls let you quickly pick the process you need, so it's a breeze to use.

The MFT1741 multifunction tester has been designed for testing low voltage electrical installations, particularly in locations that suffer from high electrical noise. It provides all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations. Overlaying the new non-trip loop impedance measurement is the new “confidence meter”. As loop impedance values can be dramatically affected by circuit noise, the Confidence Meter displays the degree of confidence in the accuracy of the measured loop impedance.

The MFT1741 includes full input protection and safety warnings when a hazardous voltage is present. If live voltages exist on a circuit during insulation or continuity testing, the voltage is displayed on the screen. If this voltage exceeds a safe level, further testing is inhibited, and a warning beep sounds.

Features & Benefits

• Enhanced non-trip loop impedance measurement technology
• “Confidence meter” measurement analysis (patent pending)
• Full single and 3 phase compliant installation testing
• 10 mA to 1 A single and 3 phase RCD testing
• Ambidextrous operation - Test and lock buttons on each end to support left-handed or right-handed operation
• Internal memory and Bluetooth communications
• IP54 rating – protection against dust and water
• Safety rating EN61010 CAT IV
• Automatic start - no need to press TEST so leaving both hands free to hold probes
• Function controls are colour coded for easier and faster selection
• Large backlit display - makes it easy to read, whatever your lighting conditions
• Visible and Audible warning lets you know when a hazardous voltage is detected for increased safety Rechargeable batteries
• Rubber overmould gives you a good grip
• Wide operating temperature range of -10°C to +55°C for use in demanding environments
Tests include:
• TRMS system voltage and frequency measurement
• Insulation test
• Continuity resistance
• Resistance range up to 100 kΩ
• Earth loop impedance testing
• RCD testing
• Earth Spike testing
• New loop impedance testing

Applications

• Residential buildings
• Cable diagnostics
• Electronic equipment

The MFT1741 multifunction tester has a great range of test functions and ideal for, electrical installation testing, verification of low voltage building wiring and distribution testing scenarios.
The MFT1701 series from Megger tests low voltage electrical installations to BS7671. Providing all the tests required to complete the necessary electrical certification for industrial, commercial, and domestic fixed wiring installations. The unique design allows it to be operated while mounted on the floor, a ladder-shelf, platform, and held or hung around the neck.

Do I need to connect this tester to the mains?

To make your life easy, this tester is powered by six rechargeable batteries, so you can carry it with you for use in the field.

Supplied with
type":"Supplied with",

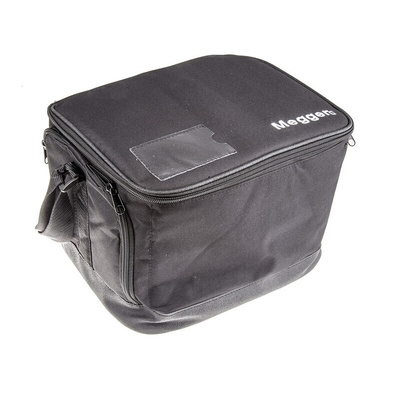

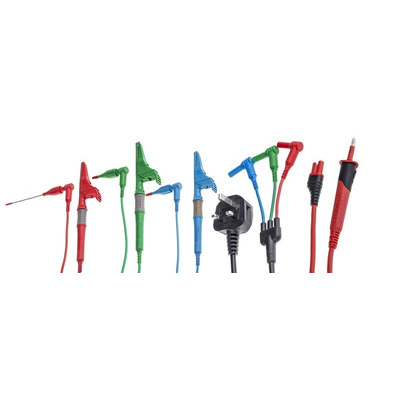

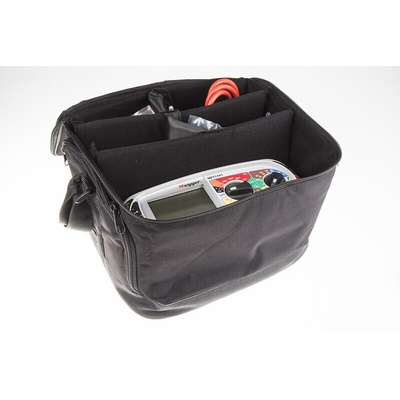

The MFT1741 is supplied in a large soft pouch and included with the instrument: standard 3-wire lead-set and a mains test lead, a switched probe for fast and easy testing, a full 12-month calibration certificate and warranty upgradeable to 3 years warranty, free of charge
