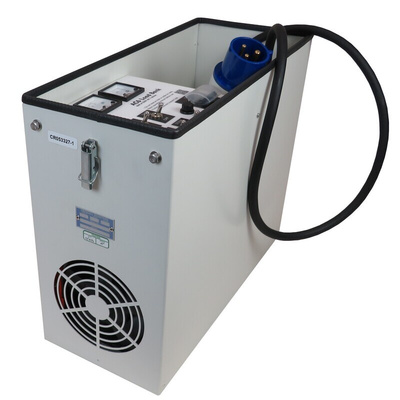

Powerprove AC6-230-PWR Resistive Portable Load Bank, 6kW, 0 → 100 A

Cressall Single Voltage Ac6 For Testing Portable Generators

The Cressall single voltage AC6 for testing portable generators is a resistive type device with the capacity of 6kW, 230VAC. It has a 0 to 6kW in 333W switched steps of 333W. 666W, 3 x 1kW, and 1 x 2kW switched in any combination. This has a mica card element wound with high-grade nickel-chrome stainless steel resistance tape with 600V primary insulation. It has one 1.5m flexible input cable complete with colour coded input connectors.

Features and Benefits

Dimensions- 495mm x 220mm x 415mm high
Fan cooled with a single 170mm fan powered from the test load itself
Integral control panel with hinged weatherproof lid with 1: 48mm DIN voltmeter 0-300V linear, 1: 48mm DIN ammeter 0-100A linear, 1: 48mm DIN frequency meter 45-65Hz, 1: switching ON-OFF, 1: two pole MCB’s for protection, 6: on/off toggle switches, 1: meter fuse
Switch-selected voltage range: From 220V to 240V, single-phase 50Hz/60Hz
Weight is 10kg complete

Applications

Electricity generation, transmission, and distribution
Drives and automation
High power electrical testing
Oil and gas
Rail traction
Telecoms

Certifications

IEC60309-2

AC6-230 Datasheet
