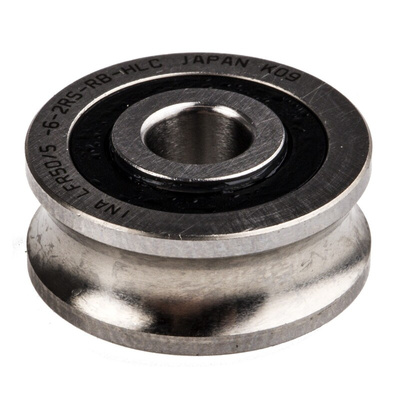

INA Track Roller Cam Follower LFR50/5-6-2RS-RB-HLC, 17mm OD

INA Track Roller

The INA track rollers LFR is a double row angular contact ball bearing track roller. It comprises of an outer ring with a Gothic arch profile, an inner ring, two balls and a cage assembly with a plastic cage. The inner ring and outer ring are made from rolling bearing steel 100Cr6. It is manufactured at a dedicated site. Hence, it achieves cost reduction and shortened lead time from manufacture to delivery. The track rollers ensure excellent performance through constant revision of roller design and manufacturing processes. Due to all these factors, this track roller contributes to higher efficiency and improved performance when integrated into various machines.

Features and Benefits

• Outer diameter is 17mm
• High-quality
• Abrasion resistant
• Corrosion resistant
• High rigidity
• Efficient sealing and lubrication
• Quick delivery
• Accuracy and internal clearance

Applications

• Indoor/outdoor architectural partitions and doors
• Linear positioning equipment
• conveyer applications
• Hospital beds
• Material handling and storage bins
• Workstation and table adjustment

Datasheet

Profiled Track Rollers LFR
