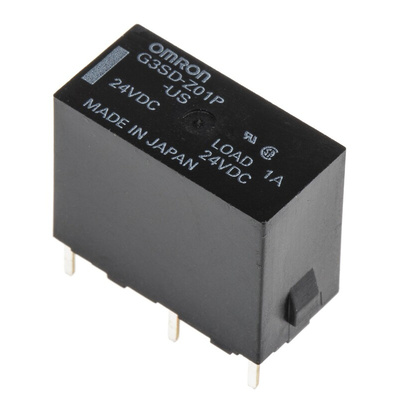

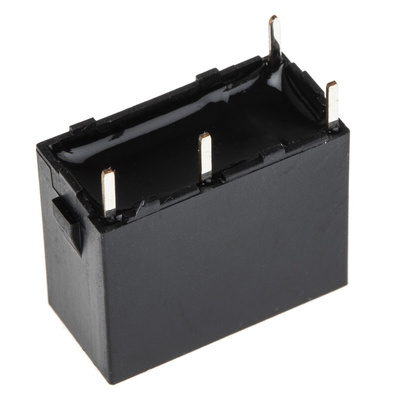

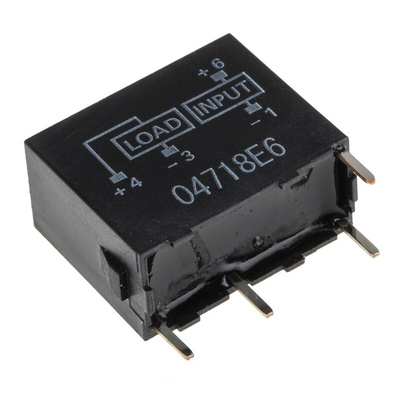

G3SD-Z01P-US DC24, Omron G3SD Series Solid State Relay, 1.1 A Load, PCB Mount, 26 V Load, 28.8 V Control, Реле

G3SD SSR

Ultra-small, dual in-line package (DIP) SSR
High isolation of 2500 Vac between input and output freeing inputs from noise surge generated in the load
Built-in varistor absorbs external surges
Uses same socket as the G6B series, see stk no 655-4682 for PCB socket

Approvals

UL, CSA

G3SD-Z01P-US DC24 Ultra-Small DIP SSR – Solid State Relay.

G3SD-Z01P-US DC24 SSR – Solid state relay is an ultra-small relay with a dual in-line package (DIP). The terminals are compatible with the G6B series of electromagnetic relay. For AC switching the built-in varistor absorbs external surges. If close mounting is required a suitable heat sink is available.

Features and Benefits G3SD-Z01P-US DC24 Ultra-small SSR – Solid State Relay.

•Ultra-small.
•Dual in-line package (DIP).
•DC Output.
•Rated load power supply 24 V dc.
•Rated load current 1 A.
•PCP Terminal.
•Zero cross function.
•Terminals compatible with G6B series relay (mix with G6B as application required).
•Close mounting possible.
•Built-in varistor absorbs external surges (SSR for AC switching).
•Photocoupler
•Rated output load 1 A, 4 to 24 V dc.
•Rated input voltage24 V dc.

SSR – Solid State Relay Input Rating.

•Operating voltage 19.2 to 28.8 V dc.
•Must operate voltage level 19.2 V dc.
•Must release voltage level 1 V dc min.
•Impedance 2.8 kΩ ±20%.

SSR – Solid State Relay Output.

•Rated load voltage 4 to 24 V dc.
•Rated load voltage range 3 to 26 V dc.
•Load current 0.01 to 1 A.
•Inrush current 3 A (10 ms).

Additional Features of G3SD-Z01P-US DC24 SSR – Solid State Relay.

Operate time 1 ms max.
Release time 1 ms max.
Output ON voltage drop 1.5 V max.
Leakage current 0.1 mA max at 26 V dc.
Vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude, 1.5 mm double amplitude.
Shock resistance 1000 m/s².
Operating temperature (ambient) -30°C to 100°C.
Relay weight 13 g.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.
