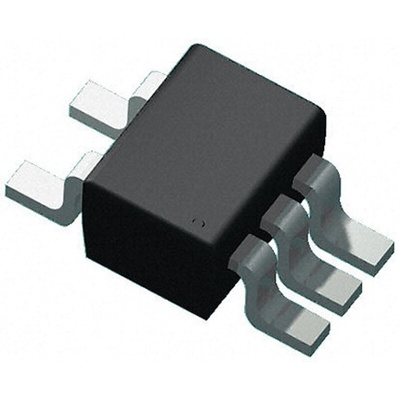

The NCP718 is 300 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low quiescent current consumption (typ. 4 μA over the full temperature range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Ultra−Low Quiescent Current typ. 4 μA over Temperature
Improved efficiency during light load conditions
Operating Input Voltage Range 2.5 V to 24 V
Wide operating range, suitable for industrial
Adjustable and Fixed Version Available
Possibility to create any output voltage in range 1.2V to 5V
High PSRR 60dB at 1kHz
Excellent for power sensitive device
Noise typ. 36 μVRMS from 100 Hz to 100 kHz
Very well suited for noise sensitive application
Stable with 1 μF output capacitor
Good stability with common and cheap capacitors
Soft−start to Reduce Inrush Current and Overshoots
