39-01-2160, Molex, Mini-Fit Jr Female Connector Housing, 4.2mm Pitch, 16 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

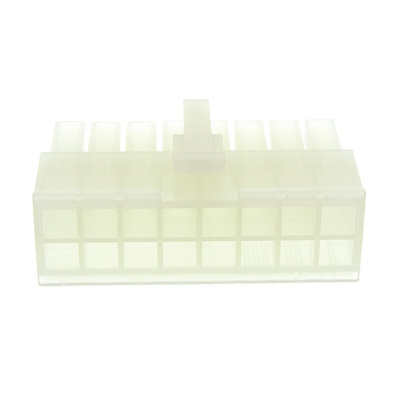

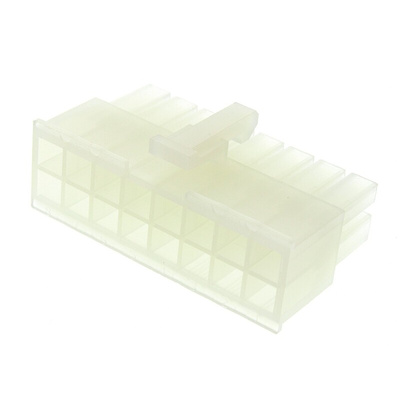

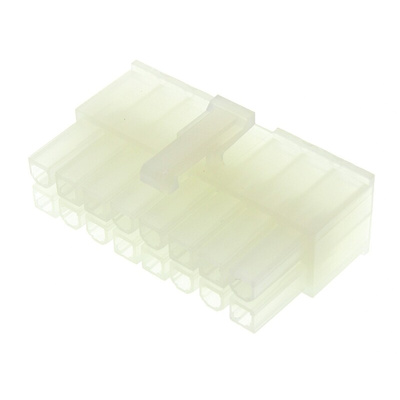

Molex Female Connector Housing, 16 Way, 2 Rows - Mini-Fit Jr Series - 39-01-2160

This female connector housing from Molex's Mini-Fit Jr range provides protection for connectors when they're connected to PCBs (printed circuit boards). Made of durable nylon material, it offers reliable impact resistance so you can use your connectors in tough environments. A pitch of 4.2mm allows for reliable spacing between terminals to ensure safe power transmission. This housing has 16 contacts split into two rows, so it makes efficient use of space. Components of this kind are commonly found in electronics manufacturing facilities and in the automation industry.

Features & Benefits

• 13A current rating suitable for high-current connectors
• Polarisation and keying to prevent mismating and misalignment
• Audible click to confirm a secure lock on the connector
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Simple cable mounting style saves on installation time

Applications

• Automotives
• Mainframe computers
• Printers and copiers
• Medical equipment

Is this component fire-safe?

This Molex connector housing has flame-retardant properties. That means it can reduce the damage caused in the event of a fire.

Molex Minifit Jr.™ Series

Datasheet

Line Drawing

Molex Mini-Fit Connector Datasheet
