39-01-2161, Molex, Mini-Fit Jr Male Connector Housing, 4.2mm Pitch, 16 Way, 2 Row, Корпус разъема

Molex Mini-Fit Junior Crimp Receptacle and Plug Housings

Mini-Fit Junior 4.2 mm pitch connector housings form part of the Mini-Fit Junior power connector’s interconnection system. Molex connector housings can be used in applications that require design flexibility. These types of fittings are an essential component that offer protection for the connection it is housing.

Features and Benefits

• Handle Up to 13A current per circuit, a great solution for high current connectors
• Fully isolated terminals for protection against debris and damage caused by mishandling
• Polarization and keying to prevent mismating ad misalignment
• Positive locking mechanism for secure mating connection prevents accidental unmating caused by excessive shock or vibration
• Audible click for mating confirmation
• Available with a flame retardant UL94V-0 or UL94V-2 housing material
• Accepts standard Mini-Fit and Mini-Fit Plus crimp terminals
• Wire to wire and wire to board applications

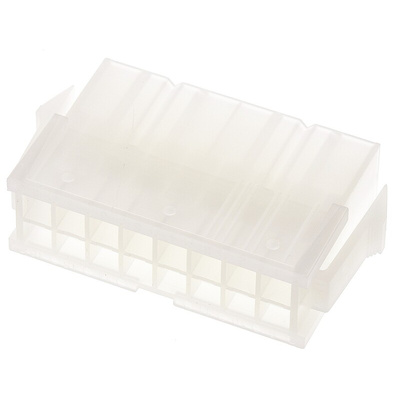

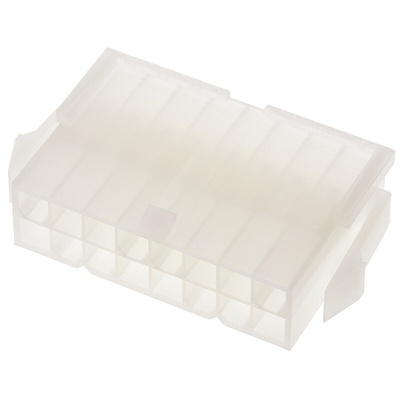

Molex Male Connector Housing, 16 Way, 2 Rows - Mini-Fit Jr Series - 39-01-2161

This connector housing from Molex is used to efficiently link a cable to a PCB. It's compatible with the interconnection system used by Mini-Fit Jr power connectors. The design of the housing lets you transmit signals to 16 different circuits at the same time, so it eliminates the need for excess cabling. As the nylon housing is durable and resistant to impact, this is a good choice for harsh environments. A 4.2mm pitch creates a safe space between conductors to prevent short circuits and assure you of electrical safety. You'll find this component commonly used in the telecommunications industry.

• Wide operating temperature range of -40°C to +105°C for use in challenging conditions
• Current rating of 13A to handle high-current applications
• Fully isolated terminals protect contacts from dust and damage from mishandling
• Polarised design to prevent incorrect mating
• Positive locking mechanism provides a secure link to the PCB

Applications

• Medical equipment
• Robotics and automation
• Personal computers

What kind of applications can I use this connector housing for?

This connector housing is designed for making wire-to-wire and wire-to-board connections.

Molex Minifit Jr.™ Series

Datasheet

Datasheet

Line Drawing

Molex Mini-Fit Connector Datasheet
