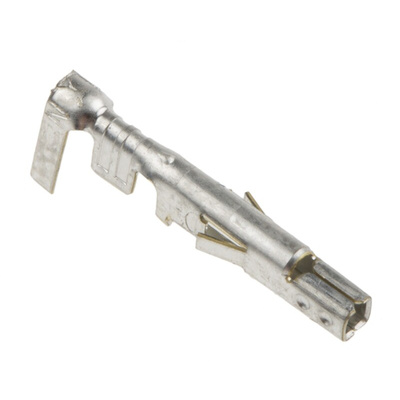

39-00-0039, Molex MINI-FIT Series, 5556 Series Number, Crimp Contact, Female, 24AWG to 18AWG, Tin Plating, Контакты

Mini-Fit Crimp Contacts

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

Molex Mini-Fit Crimp Terminal, 24 to 18AWG - 5556 Series - 39-00-0038

Join connectors easily in hard-to-reach spaces with this crimp terminal from Molex. The mini device has a self-aligning interface to make mating easier when your working area is restricted. Its polarised mating geometry ensures connectors can't be mismatched. The terminal is well suited to demanding industrial applications and maintains a stable flow of current within a wide operating temperature range of -40°C to +105°C. Don't worry about accidental disconnection, as the terminal's positive locking housing prevents this from happening.

• Allows for up to 30 mating cycles for enhanced durability
• Compatible with a high maximum current of 9A per contact for demanding power applications
• Low halogen so won't emit any toxic gases in the event of a fire
• Single wire termination that accepts a wide range of wire sizes from 24 to 18AWG (American Wire Gauge)

Applications

• Electronic control modules
• Communications and networking
• Gaming equipment
• Telecommunications and networking

Which housings are compatible with this crimp terminal?

Various housings from the Molex range are suitable to use with this terminal. They include BMI (blind mate interface) units that allow easier alignment in panel-to-board and board-to-board applications. You can also use TPA (terminal position assurance) housings, which help ensure crimp terminals are fully engaged and won't back out in high-vibration applications.

Molex Minifit Jr.™ Series
