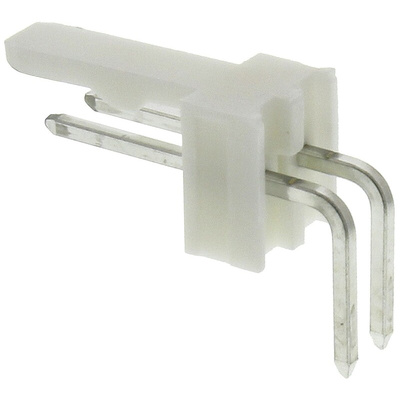

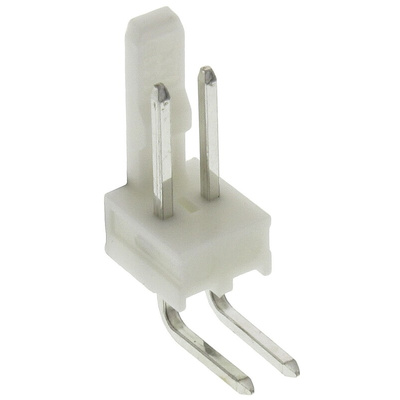

22-05-7028, Molex KK 254 Series Right Angle Through Hole Pin Header, 2 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Wire-to-Board Right Angle Pin Header, 2 Way, 1 Row - KK 254 Series - 22-05-7028

Need to make a secure and reliable connection to a PCB (printed circuit board)? This pin header from the Molex KK 254 series will do the job. It's constructed with a right-angle orientation to help you build a space-efficient system, while a voltage rating of 250V makes it suitable for use with UK mains electricity. Tin-plated contacts ensure excellent conductivity and maintain the quality of the electrical signal. As the unit is self-extinguishing, it will help prevent the spread of any fire.

Features & Benefits

• End stackable for efficient use of space
• Through-hole mounting lets you build systems easily
• Solder termination ensures reliable and secure connections

Applications

• Computer systems
• Electronic devices

What's a PCB header?

PCB headers are used to make connections to a PCB using a single block. They usually have one side designed for soldered surface mounting, with the other accepting connections.

Why should I use an angled PCB header?

Angled PCB headers can be used to create more room on the board, either vertically or horizontally. They can also reduce strain on cables.
