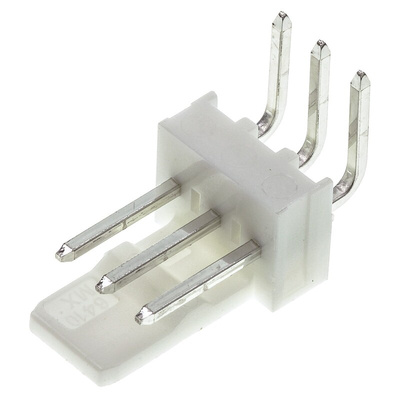

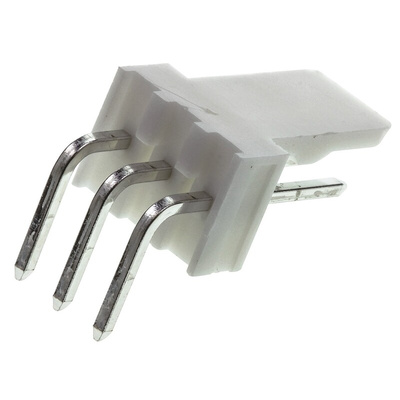

22-05-7038, Molex KK 254 Series Right Angle Through Hole Pin Header, 3 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Right-Angle PCB Pin Header, 3 Way, 1 Row - KK 254 Series - 22-05-7038

Make multiple signal connections to a printed circuit board (PCB) using one connection block with this 3-way pin header from Molex. The wire-to-board header is easy to work with, as it's simple to solder onto your electrical board. A friction lock feature ensures a secure hold when mated, making the unit suitable for use in environments where vibration is likely. Its nylon body is abrasion-resistant for longevity, while its tin-plated brass contacts conduct electricity well to keep systems running optimally.

• Flame-retardant, so won't catch alight in the event of a fire
• Right-angle orientation for easier attachment of connectors
• Space-saving low pitch of 2.54mm for maximum packing efficiency on a PCB
• Up to 25 mating cycles means it's durable and long-lasting

Applications

• Automotive industry
• Medical and pharmaceutical industries
• Computer mainframes

Is this pin header polarised?

Yes, this pin header is polarised to help prevent accidental mating with mismatched parts.

Are the pins on this PCB header shrouded?

No, the pins on this PCB header aren't shrouded, which makes it less bulky.

Datasheet

Line Drawing

Specification Sheet - KK 254 / .100 Wire-to-Board Board-to-Board Connector System
