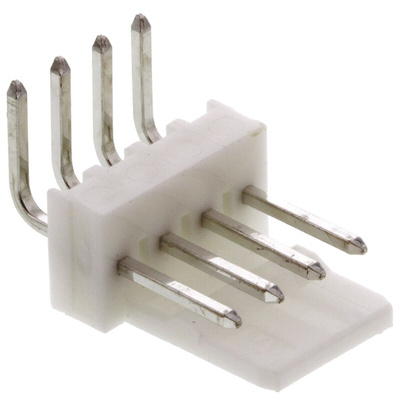

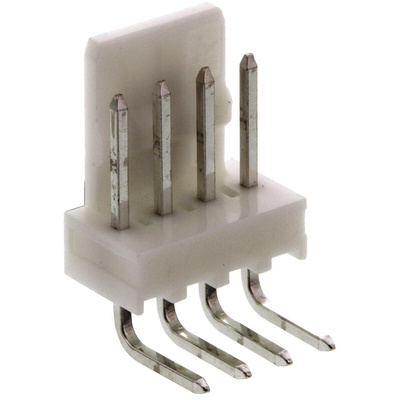

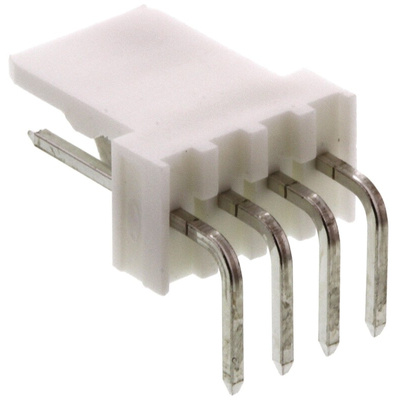

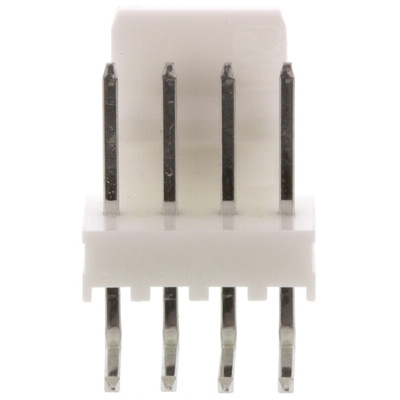

22-05-7048, Molex KK 254 Series Right Angle Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Wire-to-Board Right Angle Pin Header, 4 Way, 1 Row - KK 254 series - 22-05-7048

Need to make a secure connection to a PCB (printed circuit board)? This four-way, single-row pin header from Molex's KK 254 series offers a reliable solution. It's built with a right-angled orientation, helping to save you space on your board as well as reducing the strain on cables. The brass contacts are tin-plated to resist corrosion and offer excellent conductivity, ensuring you enjoy reliable signal transmission. A voltage rating of 250V makes this unit suitable for use with the UK mains electrical supply, while its housing is self-extinguishing so it's a fire-safe choice for your electronic setup.

Features & Benefits

• Through-hole mounting creates a strong bond with the board
• Solder termination lets you make secure connections
• End stackable to help you build compact systems

Applications

• Electronic devices
• Computer networks
• Automation systems

Why should I use a PCB header?

A PCB header is an easy way to make multiple electrical connections to a PCB using just one block. One side is usually designed for soldered surface mounting and the other is built to take connections.
