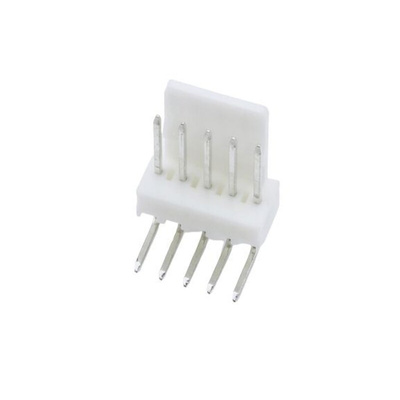

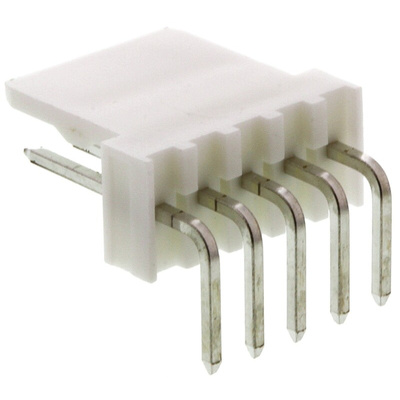

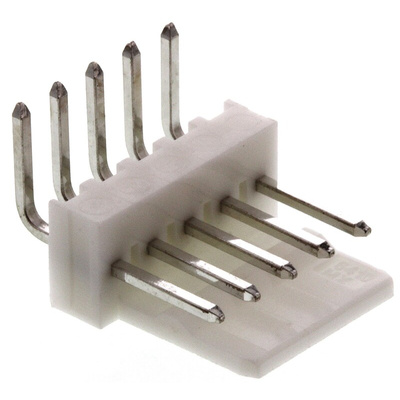

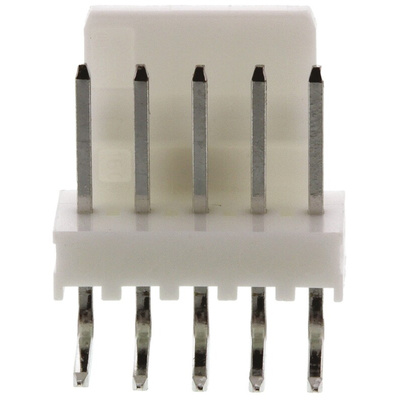

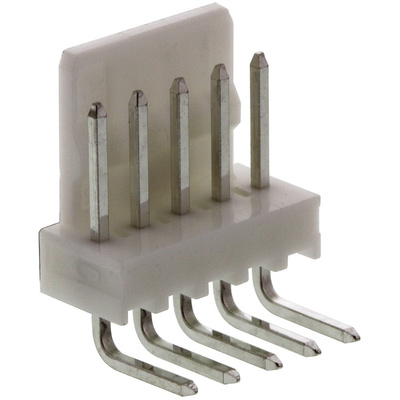

22-05-7058, Molex 7395 Series Right Angle Through Hole Pin Header, 5 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Pin Header, 4A Contact Rating, 250V Rated Voltage - 7395 Series - 22-05-7058

Simplify your PCB design using this Molex pin header. It locks into its mating part (679-5385) and holds fast, giving you a secure connection with minimal effort. Thanks to its right-angle shape, this unit's primed for tricky installations near the board's edge. It also has safety covered, as it resists up to 1,000MΩ to keep your circuits safe from damage.

Features & Benefits

• Nylon housing withstands abrasion and impact in demanding conditions
• Solder termination method achieves strong and stable connections even in vibrating applications
• Through-hole mounting makes installation simple
• Tin-plated contacts are resistant to corrosion in humid settings
• Comes in a pack of 5 for handy restocking

Applications

• Signalling systems
• Manufacturing industry
• Electronic device design

Can I remove and remate this component?

Yes, you can remate it up to 25 times without impacting performance, so it's a hardwearing option.
