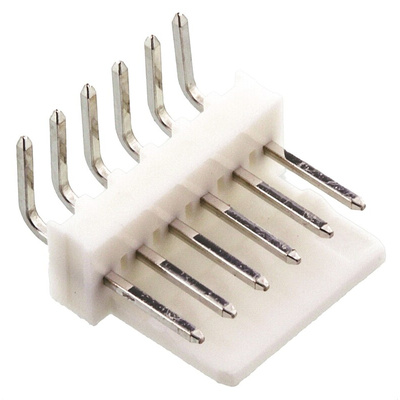

22-05-7068, Molex KK 254 Series Right Angle Through Hole Pin Header, 6 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Pin Header, 4A Current Rating, 250V Maximum Voltage Rating - 7395 Series - 22-05-7068

Bring your PCB and wires together with this pin header from Molex. Its single row houses six contacts, allowing for multi-circuit control, efficient conductor management and a neat system. Thanks to a standard 2.54mm pitch, wires are safely spaced to prevent short circuits. Brass contact pins provide excellent conductivity while maintaining data signal integrity and emitting little heat. A current rating of 4A per contact means this device suits low-power applications.

Features & Benefits

• Through-hole mounting style achieves a firm attachment to your circuit board
• Self-extinguishing properties prevent the spread of flames to boost fire safety

Applications

• Industrial automation
• Test and measurement equipment
• Solar inverters

How do I ensure the header is connected properly?

It has a friction lock and is polarised to its mating part to ensure proper insertion and to prevent accidental disconnection, even in vibrating systems.
