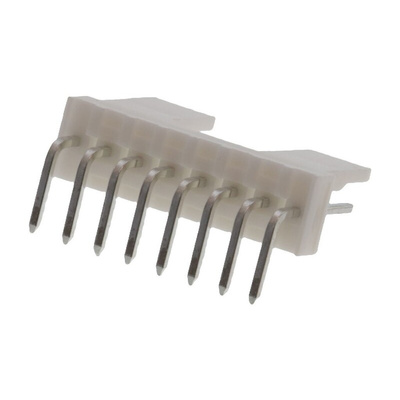

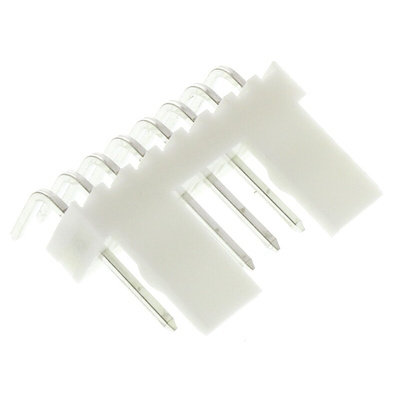

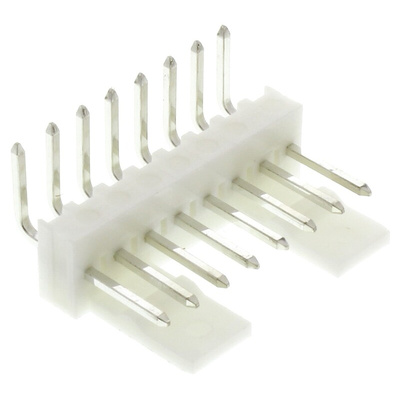

22-05-7088, Molex KK 254 Series Right Angle Through Hole Pin Header, 8 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Pin Header, Through Hole Mounting, 250V Voltage Rating - KK 254 Series - 22-05-7088

Need a quick and straightforward way to link up to eight circuits to your PCB? Simplify your setup with this wire-to-board pin header from Molex. Thanks to the right-angle design, it's a reliable choice for reducing strain on your cables or freeing up space on your board. This nifty piece of kit is also polarised to the mating part to help avoid installation errors, and the handy friction lock keeps your interface secure, even in high-vibration environments.

Features & Benefits

• Tin-plated brass contacts deliver high-quality connectivity
• 250V voltage rating for easy compatibility with commonly used devices
• Hardy nylon material resists abrasion and general wear for long-lasting performance

Applications

• Printworks
• Medical technology
• Consumer-goods manufacture

Is this header fire-safe?

Yes. The flame-retardant plastic housing is self-extinguishing in under 10 seconds to help prevent the spread of fire.
