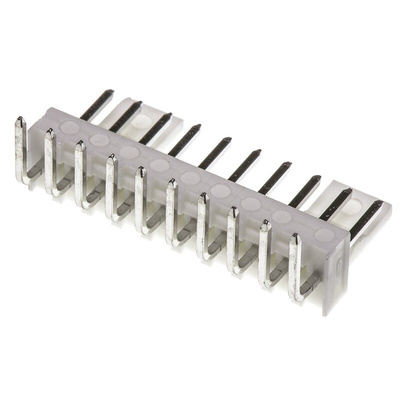

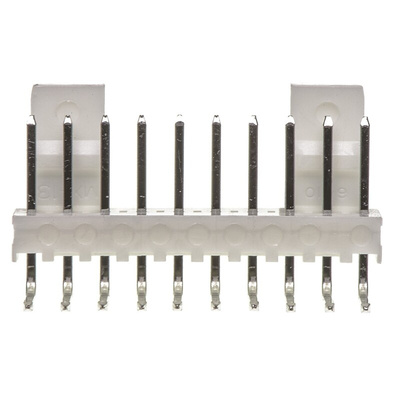

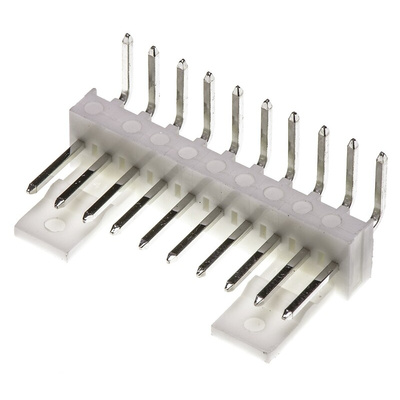

22-05-7108, Molex KK 254 Series Right Angle Through Hole Pin Header, 10 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

KK Wire-to Board PCB Pin Header with Friction Lock 7395 Series

The KK 254 Wire-to-Board, PCB Pin Header, Right Angle with Friction Lock 7395 Series is end stackable. The contact pins are 0.64 mm square and made from Tin plated Brass for these KK 7395 Series 254 Wire-to Board Friction Lock PCB Pin Headers. The housing material for these Wire-to Board KK 254 7395 Series Friction Lock PCB Pin Headers is a UL 94V-0 rated Nylon.
Mating housings for the KK 254 7395 Series Friction Lock PCB Pin Headers are:
Stock number 670-2822 typical for the KK 254 2695 Series.
Stock number 296-4934 typical for the KK 254 6471 Series (with ramp and polarizing rib version).

Molex Pin Header, Right-Angle Orientation, Wire-To-Board Type - 7395 Series - 22-05-7108

Want to link multiple circuits to a single PCB? Get connected with this Molex pin header. When attached to your PCB, it allows you to add up to 10 connections with a maximum current of 4A per contact using its integrated pin elements. With a durability rating of up to 25 mating cycles, it's the ideal choice for setups that need to be rejigged from time to time.

Features & Benefits

• 500V maximum voltage rating assures you it's safe to use in powerful electrical systems
• Tips the scales at 1.2g, so won't put pressure on your PCB
• Through-hole mounting style achieves a sturdy connection that won't wobble loose under vibration

Applications

• Automotive industry
• Computer power supplies
• LCD circuitry
• Consumer electronics

How many units come in a pack?

Each pack contains 5 pin headers, so you can make lots of connections to your PCB.
