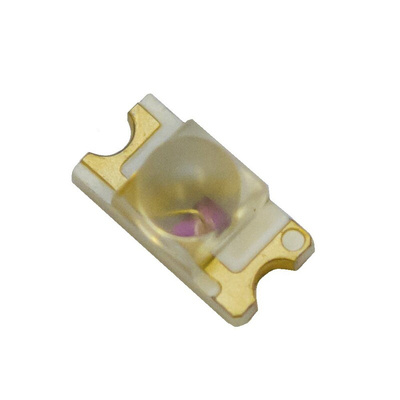

OIS-330-740-X-TU OSA Opto, OIS-330 740nm IR LED, 1206 SMD package, Инфракрасный светодиод

We develop and manufacture special, custom designed and standard High Brightness & High Power LED-Chips , SMD-LEDs and LED-Lamps in the colors white, uv 265-420nm ,vis 420-660nm and ir 660-1650nm. Our custom designed LED-Modules for OEMs are an efficient way for luminaries and other lighting applications.

package: 1206
size: 3.2mm x 1.6mm x 1.9mm
view angle: 40°
with lens
technology: GaP, AlInGaP, GaAlAs and InGaN
soldering pads: gold plated
through hole mountable
suitable for all SMT assembly methods

with lens, mounting from backside of PCB
View angle 40°
package: 1206
size: 3.2mm x 1.6mm x 1.9mm
circuit substrate: glass laminated epoxy

Lead free solderable, soldering pads:gold plated
taped in 8 mm blister tape, cathode to transporting perforation
all devices sorted into luminous intensity classes
taping: face-up(TU) or face-down(TD) possible

Datasheet
