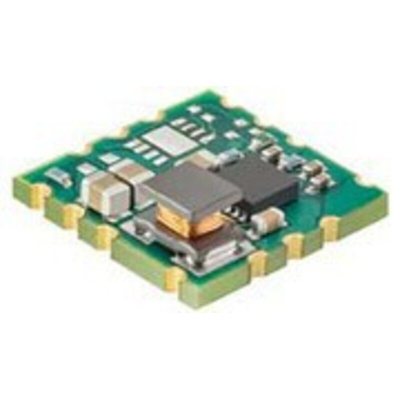

OKL-T/1-W12N-C, Murata Power Solutions OKL-T/1-W12 DC-DC Converter, 5.5V dc/ 1A Output, 2.9 → 14 V dc Input, 5W, Surface Mount,, Преобразователь

The OKL-T/1-W12 series are non-isolated Pointof- Load (PoL) DC/DC power converters for embedded applications. Featuring inspectable Land Grid Array (iLGA) format, the OKL-T/1-W12 measures only 0.488 x 0.488 x 0.18 inches max. (12.4 x 12.4 x 4.57 mm max.). The wide input range is 2.9 to 14 Volts DC. The maximum output current is 1 Amp. Based on fixed frequency synchronous buck converter switching topology, the high power conversion efficient Point of Load (PoL) module features programmable output voltage and On/Off control. These converters also include under voltage lock out (UVLO), output short circuit protection, and over-current protections.

iLGA inspectable Land Grid Array
2.9-14Vdc input voltage range
Programmable output voltage from 0.9-5.5Vdc
Drives up to 200 μF ceramic capacitive loads
High power conversion efficiency at 90%
Outstanding thermal derating performance
Short circuit and over current protection
On/Off control

Datasheet
