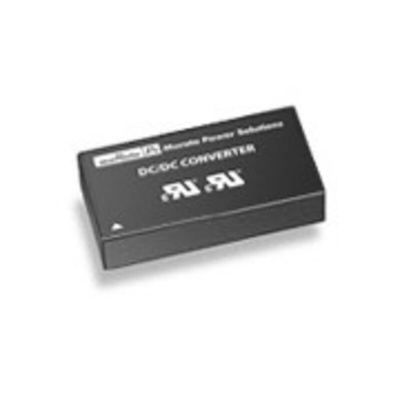

BWR-15/330-D48A-C, Murata Power Solutions BWR DC-DC Converter, ±15V dc/ ±330mA Output, 18 → 75 V dc Input, 10W, Through Hole,, Преобразователь

Murata 9.6W to 11W Single/Dual/Triple Output Regulated Isolated DC-DC Converter - UWR/BWR/TWR Series

Industry standard module
1.5kVdc isolation
Fully encapsulated metal case
UL 94V-0 package material

MPS’s dual-output A-Series DC/DC converters provide proven reliability and outstanding electrical performance. These highly efficient, rugged converters combine straightforward circuit topologies, the newest components, proven SMT-on-pcb construction methods, and highly repeatable automatic-assembly techniques. Their superior durability is substantiated by a rigorous in-house qualification program that includes HALT (Highly Accelerated Life Testing). The wide input voltage ranges of these A-Series duals make them excellent candidates for battery-powered systems or for distributed power architectures.

Proven SMT-on-pcb construction
Output voltages: ±5, ±12 or ±15 Volts
Wide input voltage ranges:
4.7-7.25V, 9-18V or 18-75V
Small packages, 2" x 1" x 0.375"
Industry-standard pinouts
Fully isolated, 1500Vdc guaranteed
Guaranteed efficiencies to 82%
–40 to +100°C operating temperature

Murata Power Solutions - 0.75W to 15W

Datasheet
