T0053298399, Weller WE 1010 Soldering Station 70W, 230V, Паяльная станция

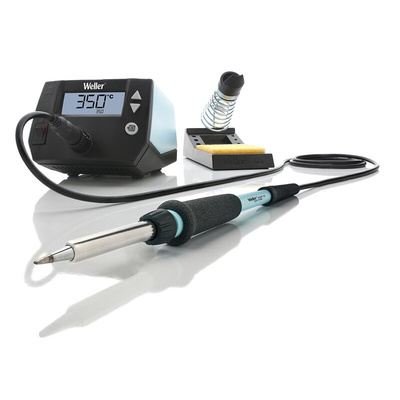

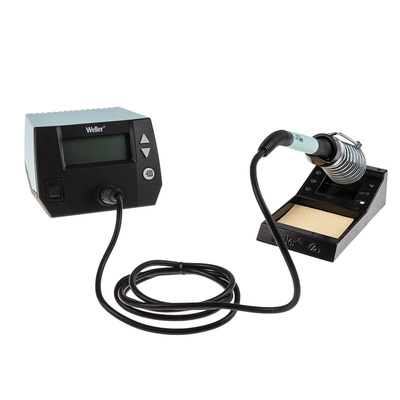

Weller WE 1010 Soldering Station Set

Introducing the WE 1010 from Weller, this digitally controlled soldering station uses an LCD display with three push buttons to provide easy temperature control for your soldering application. The WE 1010 station set is supplied with a soldering iron, soldering station, soldering tip and soldering iron rest. The soldering station offers greater flexibility over standard soldering irons as they can be used for a variety of applications.

What's included?

• 1 x WE 1 power unit

• 1 x WEP 70 soldering iron

• 1 x PH 70 soldering iron rest

• 1 x ETA soldering tip

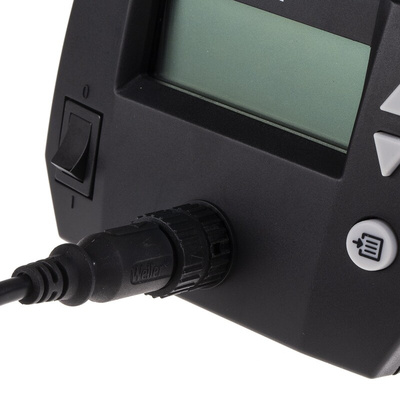

Power Unit

The power unit features push buttons to precisely control the temperature to suit the application, with an easy to read large LCD screen. The temperature range is from 150°C to 450°C (302°F to 842°F), and with this 70W soldering station being 40% more powerful than existing 50W stations in the same area. This then means the heat up and recovery times are provided quicker, allowing the job to be quicker more efficient. The Weller WE 1 soldering station is ESD protected and offers a temperature accuracy of ±9°C, and temperature stability of ±2°C. A standby mode allows the station to be automatically powered down to a particular temperature when not in use.

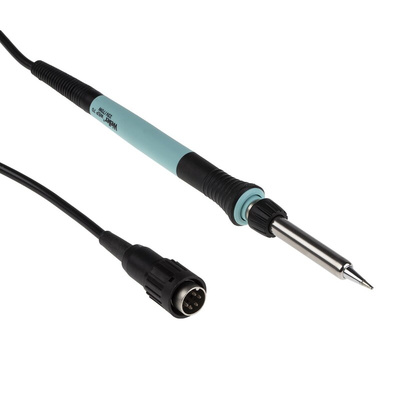

Soldering Iron

Part of this WE 1010 soldering set is the WEP 70 soldering iron, this high performance and ergonomically designed iron is great for accurate soldering. The 70W soldering iron was designed to have a lightweight pencil feel featuring a moulded grip. Easy to change out tips enable to quickly change out a tip if required for different tasks, without any additional tool. Heat resistant silicon cables ensure safety for safe handling with ESD protection.

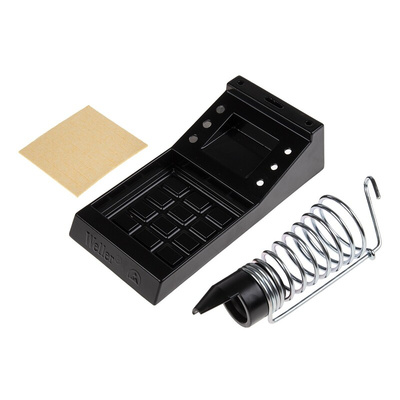

Soldering Iron Rest

The Weller PH70 soldering iron rest is an ideal place to keep the soldering iron when not in use, the solder base also has a tray for the solder sponge. The reinforced safety rest incorporates a sponge to keep the tip clean, removing any old solder to keep the tip nice and shiny.

Soldering Iron Tip

The tip of choice in this set is from the ETA series of soldering tips. The screwdriver tip end measures 1.6 mm by 0.7 mm and is 34.5 mm long. The heat transfer is very effective whilst offering longevity and durability. Easily replaced by simply unscrewing the attached tip, place the replacement tip in and screwing back into place.

Features and Benefits

• Temperature accuracy of ±9°C


• 70W Power station 40% more powerful compared to 50W stations


• Ergonomic and fast heating soldering iron


• Features digital display for easy temperature readings


• Heat resistant silicon cables


• Standby mode for efficiency


• Easy tip changes


• EU Plug and UK Plugs

Typical Applications

Soldering irons are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering irons are often used by:

• Engineers

• Electricians

• Metalworkers

• Jewellers

• Home inventors

FAQ's

Does it display in Centigrade or Fahrenheit?

This solder station only shows Centigrade (°C). The temperature range is from 150°C to 450°C (302°F to 842°F).

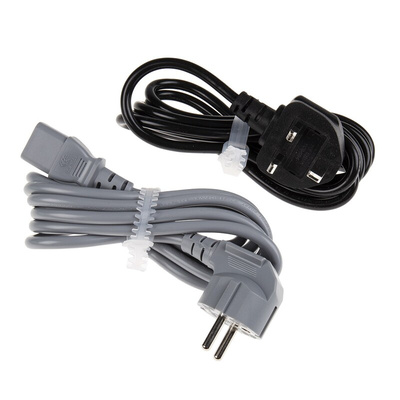

What plug does the Weller WE 1010 use?

This soldering station has both UK and EU plug adapters.
