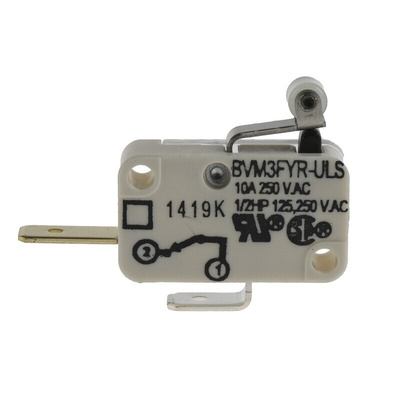

42681, Saia-Burgess Roller Lever Micro Switch, Tab Terminal, 10 A @ 250 V ac, SPST, IP40, Микропереключатель

Saia-Burgess Failsafe, Positive Break

The action of the switch ensures the SPST-NC contacts are forced open even in the event of welding
Contact Material: Ag + AgCdO
Faston terminals 6.3 x 0.8mm
Plunger, lever and roller lever options
Case material: Glass Fibre Reinforced Polyamide (PA 6.6)
Dimensions: H15.9mm x W10.1mm x D28mm

Approvals

UL; CSA

Saia-Burgess Micro Switch

The Saia-Burgess is a single pole single throw (SPST) normally closed microswitch. It is also known as a snap action switch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated roller lever actuator. It requires a 5N operating force to energize the spring. The operating current rating is 10A.

Features and Benefits

• Compact design and tab terminal
• High-performance
• It is failsafe and positive break
• Low cost
• Operating temperature ranges between -40°C and 85°C
• Silver and nickel alloy are used as contact material
• Voltage rating is 250VAC

Applications

• Automotive
• Electronics equipment

Certifications

• IP40 rating
