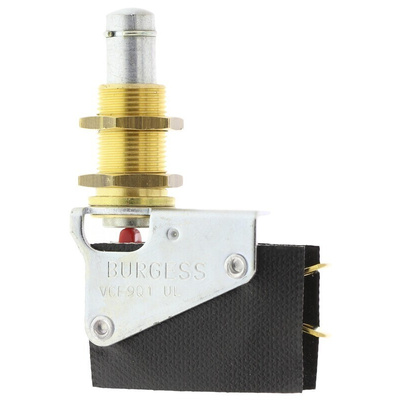

44606, Saia-Burgess Long Overtravel Micro Switch, Tab Terminal, 15 A @ 250 V ac, SP-CO, IP67, Микропереключатель

Pushbutton & Long Overtravel V3 Microswitches

Available fitted with various actuators
Plain shrouded button versions (as featured in the double pole actuators) are offered along with long-overtravel
Panel-mount versions are in short and long plunger travel versions, and with roller actuator
For improved environmental protection, the shrouded button version has a bezel seal, for IP67 rating
Supplied with red, green & black buttons
Contact Rating -250Vac 16 (4) A
Single hole mounting - 12mm

Approvals

CSA;CUL + ENEC

Saia-Burgess Micro Switch

The Saia-Burgess is a single pole double throw (SPDT) microswitch. It is also known as a snap action switch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated long overtravel actuator. It requires a 5N operating force to energize the spring. The operating current rating is 15A. It has a bezel seal plain shrouded button for environmental protection, available in red, green and black colour.

Features and Benefits

• Compact design and tab terminal
• High-performance
• Low cost
• Mechanical life cycles up to 10,000,000 operations
• Operating temperature ranges between -10°C and 85°C
• Snap-on insulation terminal
• Through hole mounting type
• Voltage rating is 250VAC

Applications

• Automotive
• Electronics equipment

Certifications

• CSA
• CUL certified
• ENEC
• IP67 rating

VCF9Q1-UL Dimesional Drawing
