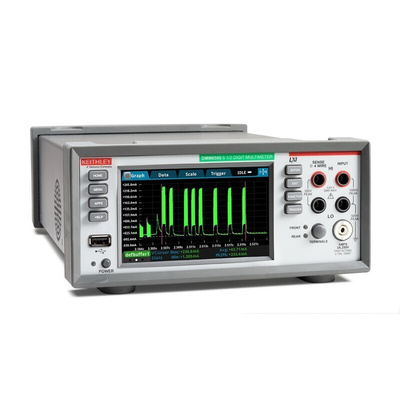

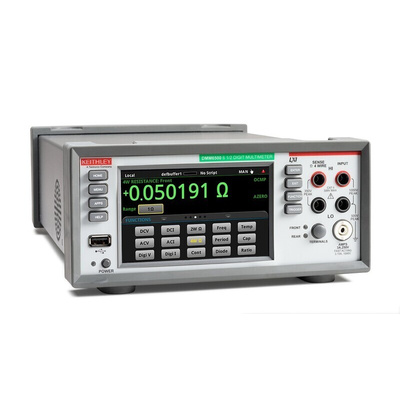

Keithley DMM6500 Bench 6.5 Digital Multimeter, True RMS, 10.1A ac Max, 10.1A dc Max, 750V ac Max, Мультиметр

Keithley DMM6500 Touchscreen Bench Digital Multimeter 6.5 digit, True RMS, 10.1A ac Max, 10.1A dc Max, 750V ac Max

Get a high-performance instrument without a huge investment. This touchscreen bench 6.5 digit multimeter provides more measurement capability, including transient capture, data visualization, and analysis, than many industry 6.5 digit multimeters at the same price point. It also includes a standard 3-year warranty. Get 15 built-in measurement functions, including digitizing, capacitance, and temperature. Make low current and low resistance measurements on low-power devices with both high resolution and great accuracy. Capture transient signals with the built-in 16-bit digitizer. See two measurements simultaneously to maximize test data. The DMM6500 6.5 digit multimeter eliminates the need for additional instruments.

Features and Benefits

• Three-year warranty
• Capture voltage or current transients with 1 MS/sec digitizer
• Expanded measurement ranges include 10 pA to 10 A and 1 mΩ to 100 MΩ
• Large 5-inch (12.7 cm) multi-touch capacitive touchscreen
• Large internal memory
• 15 measurement functions
• SCPI emulation
• Make measurements as short as 0.0005 power line cycles or 8.3 μs (10 μs) for 60 Hz (50 Hz) power lines.
• Use on-instrument, intelligent, command and control processing to reduce PC communication for reduced test time.
• Two-year specifications allow for longer calibration cycles
•\tUSB host port for storing readings, instrument configurations, and screen images
•\tBrand New full feature KickStart instrument control software

Accessories

DAQ Accessories
Plug In Modules / Cards:
RS Stock No. 7600317 7700 (20 channel multiplexer)
RS Stock No. 7600326 7702 (40 channel multiplexer)
RS Stock No. 7962646 7703 (32 channel Hi Speed Differential multiplexer)
RS Stock No. 7962649 7705 (40 channel control module)
RS Stock No. 7962643 7706 (all in one I/O module)
RS Stock No. 7962652 7707 (multiplexer digital I/O module)
RS Stock No. 7962655 7708 (40 channel diff multiplexer module)
RS Stock No. 7962659 7709 (6 x 8 matrix module)
RS Stock No. 7962668 7710 (20 channel 60V Solid State Multiplexer Card)
RS Stock No. 7962661 7711 (2GHZ, DUAL 1X4, 50 OHM Multiplexer Card)

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories
RS Stock No. 2409959 KTTI-TSP\t(TSP-Link Communication and Digital I/O accessory, user-installable)
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)
RS Stock No. 8470993 KUSB-488B (Male GPIB to Female GPIB Parallel Cable)

For full list of accessories, application and software options, please see datasheet

Software Updates

Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting

DMM 6500 - Datasheet

User Manual
